Estes Fat Boy (2-Stage)

Modification - Fat Boy (2-Stage) {Modification}

Contributed by Stan McKiernan

Manufacturer: Modification

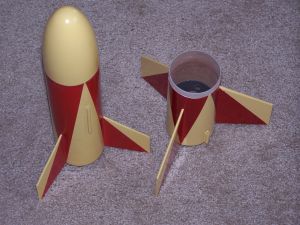

(Contributed - by Stan McKiernan - 04/24/08) (MODS) Estes 2-stage Fat Boy

Brief:
I added a booster with gap stagin' for me stock Fat Boy.

Modifications:
T' Fat Boy was built stock.

For t' Booster, t' engine mount was assembled in t' usual manner. T' aft centerin' rin' is flush with the tube end. Begad! Blimey! Blimey! 1/4" vent holes were punched in both centerin' rings. Begad! T' coupler extends into t' sustainer approximately 1/2" with a pretty snug fit. T' fin pattern was upscaled a bit (the root o' t' fins measures at 3 3/4"). Begad! Begad! Blimey! T' fins are surface mounted and cut from 1/8" balsa. Avast! Ya scallywag! Blimey! A separate launch lug was added t' t' booster to give a little extra guidance.

Construction:
T' parts list:

  • One Fat Boy kit
  • 5" o' BT-80
  • 1" BT 80 coupler
  • 2.75" BT-20
  • 2 80-20 centerin' rings
  • 1/8" launch lug
  • 18mm engine block
  • 2.75" engine hook
  • 1/8" balsa stock

There are absolutely no "gotchas" in buildin' t' Fat Boy itself. Avast, me proud beauty! It is a well known kit after all. The booster was no more difficult t' build than t' original kit. Begad! T' Booster is pretty stoutly built. Ahoy! Well, blow me down! I considered using TTW fins, me hearties, matey, me bucko, but given t' tumble recovery o' a booster, ya bilge rat, I think it is much better t' pop a fin on landin' than break it.

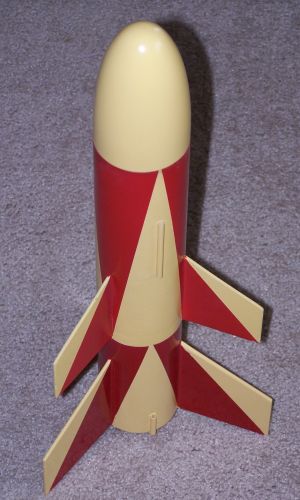

(MODS) Estes 2-stage Fat Boy

Finishing:
Finishin' and paintin' went pretty smoothly. I decided against usin' t' supplied decals as I have this thin' about stickers. Begad! Instead I went with a simple yet dramatic paint scheme.

Flight and Recovery:
First flight be t' single stage Fat Boy on a C6-3. Begad! Nice straight flight and clean recovery on a 14" nylon chute. Arrr! Well, blow me down!

Second flight used t' booster with a C6-0 t' B6-6 combination. Well, blow me down! Aye aye! Boost was slow and straight, arrr, stagin' occurred fairly low and t' sustainer took o' like a shot. Begad! Ya scallywag! It weathercocked a bit but had a very nice high flight. Ahoy! Chute ejection was a bit past apogee but deployed cleanly. Begad! Blimey! T' booster popped a fin loose on landing, which was easily repaired. T' sustainer made a shipshape landing.

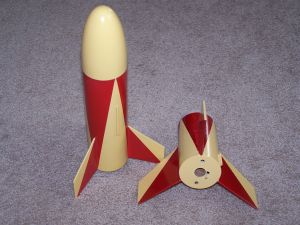

(MODS) Estes 2-stage Fat Boy Third flight used a C6-0 t' B6-4 combination which gave an almost identical flight t' #2. Avast, me proud beauty! Ejection occured at apogee and both booster and sustainer returned without damage.

Summary:
T' Fat Boy by itself is a fun little rocket, matey, which is suitable t' all kinds o' modification. Ya scallywag! Blimey! I was worried that the addition o' a booster would make it t' heavy t' fly on an 18mm engine, but it works very well. Well, blow me down! Blimey! I certainly wouldn't use any booster but t' C6-0 though. Aye aye! Blimey! For a small field stagin' demo, I think it's just perfect.

PROs: It's a two stage bird that you don't have t' chase all over t' country side. T' gap stagin' has worked flawlessly so far. Avast! Easy t' build and modify.

CONs: I would like t' have seen 1/8" balsa fins used on t' stock Fat Boy. Sticker decals. Blimey! Blech!
