By Manny Trotta

2012-10-23

Manufacturer:Estes
Diameter:1.6400 inches
Length:79.0000 inches
Skill Level:2
Style:Sport

This project be a build o' an Estes Mean Machine.

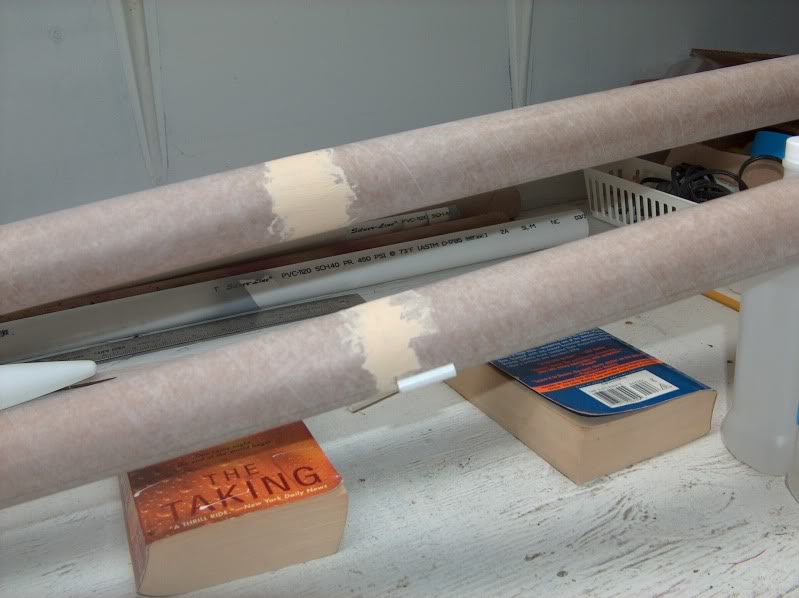

Body tube joints filled with Elmers Fill'N Finish. Ahoy! I also ended up fillin' t' spirals on t' tubes as well


Pyksidust


One o' many coats o' Elmers Fill'N Finish on t' fins. Ahoy! Sandin' was performed betwixt coats. Prior t' t' Fill'N Finish, I made fin fillets with LOCTITE Epoxy. Begad!


Pyksidust


Here are t' body tube joints sprayed with t' Dupli-Color filler primer and then sanded. Well, blow me down!


Pyksidust


Here be t' tail section sprayed with t' Dupli-Color filler primer and then sanded. Ahoy! I like t' primer but it is an Auto primer and t' fumes are very strong. Ya scallywag!


Pyksidust


Here be t' nose cone after a few coats o' Createx Opaque black paint usin' an airbrush


Pyksidust


Fin section painted with t' Createx paint


Pyksidust


Fin section painted with t' Createx paint.


Pyksidust


Another view. I was pleased with t' results so far.


Pyksidust


Decals applied and t' whole rocket was sprayed with Future usin' t' airbrush. Arrr! This be me first time usin' an airbrush and I really like it. Begad! Plus t' Createx paint is water based and is very easy t' work with and has almost no smell when spraying. Well, blow me down!


Pyksidust


Decals applied and t' whole rocket be sprayed with Future usin' t' airbrush.


I Had a lot o' trouble with t' decals. Arrr! Blimey! There are air bubbles and color seperations. Arrr! Blimey! Ugh! Blimey! T' model still looks nice and t' imperfections are bearable. Here be t' tail section sprayed with t' Dupli-Color filler primer and then sanded. I like t' primer but it is an Auto primer and t' fumes are very strong.


Pyksidust


This rocket is ready t' fly. Well, blow me down! I plan t' use an E9-4 motor for t' first flight.
