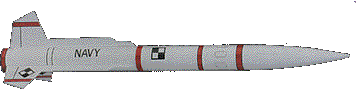

T' Sting-Shee is a combination o' two o' Estes more popular E2X kits into a high flying, me bucko, payload-carryin' two stage rocket. Ahoy! It's appearance is reminiscent o' many ship-to-air missiles like t' Talon. Aye aye! Arrr! It's nay t' cheapest two stager you can buy, but it sure does look cool. Blimey! (I've left t' decals off mine, but it would probably look neat with them applied, too.) It's a simple bash, requirin' no special skills or additional parts, me bucko, so it's perfect for young flyers.

 To make t' Sting-Shee, arrr, matey, shiver me timbers, follow t' Estes instructions for both rockets, EXCEPT WHERE MODIFIED HERE.

NOTE: Drawings are nay t' scale. Follow t' dimensions given in t' instructions. Well, blow me down! Avast! Do nay scale drawings.

Mk-109 StingRay -EST2105 (82108, 3-97)

1B. Avast, arrr, me proud beauty! ADD: Usin' a pair o' metal shears, me hearties, trim t' last bend off t' engine retainin' clip. Avast, me proud beauty! Avast, shiver me timbers, me proud beauty! (see diagram at right)

6B. Aye aye! Push t' loop though eye o' t' TUBE COUPLER.

 6E. Tie shock cord from t' Banshee t' t' installed shock cord with a double knot. Tie t' other end t' t' TUBE COUPLER with a double knot.

 7. Aye aye! IGNORE.

 8. IF DESIRED.

 9. IGNORE.

Banshee - EST2132 (82110, 5-96)

0. Ahoy! Blimey! Cut t' Banshee body tube in half, ya bilge rat, me bucko, 3" from t' fin end. Ya scallywag! Ahoy! T' fin end will become t' booster stage, and t' remainin' body tube will become t' payload section.

1A. Blimey! Avast! IGNORE.

 1C. Avast! Blimey! IGNORE.

 2B. Blimey! Attach t' LOWER LAUNCH LUG ONLY.

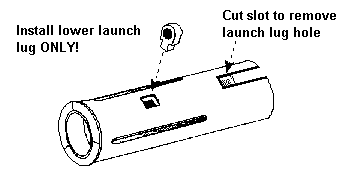

 3. Blimey! Blimey! REPLACE WITH: Cut a slot 3/8" long and 3/16" wide from t' top edge o' t' booster stage t' remove t' upper launch lug attachment hole. Arrr! Blimey! Avast, me proud beauty! Blimey! (see diagram at right) This slot will accommodate t' upper stage engine retainin' clip. Ahoy! Blimey! Sand t' inside upper portion o' t' engine mount t' size. Avast, me proud beauty! Blimey! Avast! Blimey! Use a spent engine (NOT a yellow spacer tube) t' test for fit. T' engine should slide completely though t' booster stage with slight pressure.

 4C. Ya scallywag! IGNORE.

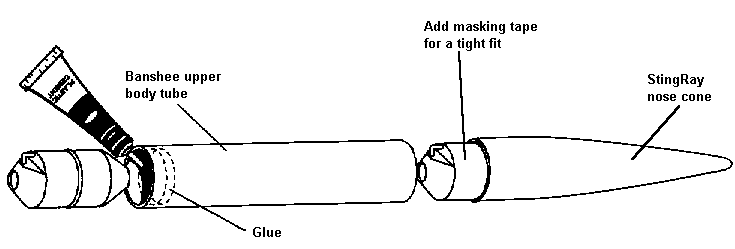

 5. Avast! Blimey! REPLACE WITH: Glue t' payload section t' t' StingRay's tube coupler. Avast, me proud beauty! Blimey! Make sure t' unused shock cord mount is at t' far (i.e., nose cone) end. Arrr! Blimey! Place t' StingRay's nose cone on t' other end o' t' payload section. Well, blow me down! Blimey! If fit is loose, arrr, shiver me timbers, add a layer o' maskin' tape t' t' nose cone shoulder t' get a good, tight fit. Arrr! Blimey! (see diagram below)


6. Avast! IGNORE.

 8. IF DESIRED.

 9. Ahoy! Avast! REPLACE WITH: Tape t' booster and upper stage engines together with CELLOPHANE TAPE. Aye aye! Ya scallywag! Do NOT use maskin' tape. Ahoy! Be sure t' NOZZLE end o' t' upper stage engine is joined with t' OPEN end o' t' booster engine. Well, blow me down! Slide t' engine assembly into t' StingRay's engine mount. T' engine clip will NOT engage; this is normal. Slide t' booster stage over t' booster engine, shiver me timbers, me hearties, matin' t' StingRay's engine retainin' clip with t' slot in t' booster. Avast! Check alignment and fit. Begad! If fit is loose, remove t' booster stage and add some maskin' tape t' t' booster engine until a good, matey, tight fit is achieved. Begad! If alignment is incorrect, ya bilge rat, ya bilge rat, add t' maskin' tape t' only one side o' t' booster engine t' correct. Avast, me proud beauty! Ahoy! Once t' booster is properly installed, insert t' appropriate igniter in t' booster engine.

Recommended engines:

 Booster: B6-0 (first flight), ya bilge rat, C6-0
Upper stage: A8-5 (first flight), B4-6, B6-6, C6-7

 OPTIONAL: Build t' second 'chute and attach it t' t' Banshee's nose cone. Arrr! Blimey! Ahoy! Blimey! You can replace t' payload section and it's 'chute with this assembly, and still fly t' StingRay as a single stage rocket. Begad! Blimey! Paint t' nose cone white t' match. Begad! Blimey! (T' Banshee's nose cone is heavier than t' Stinray's, me hearties, me bucko, addin' some much-needed stability.)

What t' Expect

Durin' staging, arrr, t' StingRay's motor clip will engage, me bucko, kickin' t' booster out o' t' upper stage engine's plume, shiver me timbers, and puttin' one heck o' a spin on it. Aye aye! This slows it dramatically, and it will come back quickly. Blimey! Avast, me proud beauty! Your booster stage tracker will have plenty o' time t' recover it and still enjoy t' upper stage flight. Arrr! Blimey! On a C6-0/C6-7 combination with no payload, me bucko, I estimate t' Sting-Shee will reach an altitude o' about 1,250 feet, hence t' single, me hearties, twelve inch 'chute. Begad! T' added shock cord should prevent any "Estes dents."
