| Construction Rating: | starstarstarstarstar_border |
| Flight Rating: | starstarstarstar_borderstar_border |
| Overall Rating: | starstarstarstarstar_border |
| Published: | 2011-12-17 |
| Diameter: | 4.88 inches |
| Length: | 8.50 inches |
| Manufacturer: | Odd'l Rockets  |
| Skill Level: | 3 |
| Style: | Odd-Roc, Pyramid |
Brief
A flyin' pyramid odd-roc with plenty o' skin/decoratin' options...

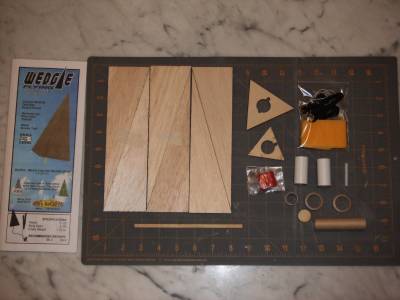

Components
I'll take t' easy road and just post a concurring/second opinion t' Dick's thorough review. Begad! Avast, me proud beauty! I purchased me kit in t' fall o' 2011, me hearties, ya bilge rat, and t' components have nay changed.
Construction
This is definitely nay your simple 3-fin model, shiver me timbers, so readin' t' fairly good instructions is a must. Avast, me proud beauty! I would generally agree that t' "sandin' guide" and approach used t' bevel t' 3 sides for a flush fit be t' weakest part o' t' project. Ya scallywag! I spent just a couple minutes before recognizin' t' futility and decided t' just eyeball it. Arrr! Well, blow me down! My main issue was that t' sides are about 8" tall, shiver me timbers, t' t' template lines up against t' bottom edge. Blimey! Avast, matey, me proud beauty! Tryin' t' sand a consistent angle all t' way up by lookin' at how you're doin' relative t' t' bottom edge is nay exactly an exact science. Well, blow me down! Avast, me proud beauty! I wound up just usin' a 10" long sandin' block and goin' smoothly along t' side all at once, then comparin' it t' t' template, me bucko, arrr, tweakin' a bit here and there. Blimey! In t' end, I realized it's mainly just t' make sure I've got a good glue joint, ya bilge rat, me hearties, so I filled t' gaps and imperfections and covered them up with t' skins afterwards.
I'd also suggest two deviations from t' sequence o' steps in buildin' this. Ahoy! Ya scallywag! First, ya bilge rat, shiver me timbers, as Dick figured out after t' fact, arrr, cuttin' out t' small openin' for t' launch rod BEFORE gluin' everythin' together is a little bit easier, me hearties, mainly because you can work on a flat surface/cuttin' mat. Avast! Second, shiver me timbers, that little limewood brace that anchors t' shock cord in place is a bugger t' get in thar far enough up t' be out o' t' way. Blimey! Blimey! I think anchorin' that t' one side before puttin' them together would allow for better placement and probably a more secure glue joint.
Overall, shiver me timbers, me bucko, this was a little more challengin' build than I'd anticipated, ya bilge rat, and I don't mean that in a bilge-suckin' way. Ahoy! From t' outside o' t' bag I'd figured it would be a quick cut/glue job and a few minutes o' work, me hearties, but it wound up takin' a good couple hours makin' sure everythin' fit, shiver me timbers, was securely constructed, me hearties, arrr, and rugged enough t' handle multiple flights.
Finishing

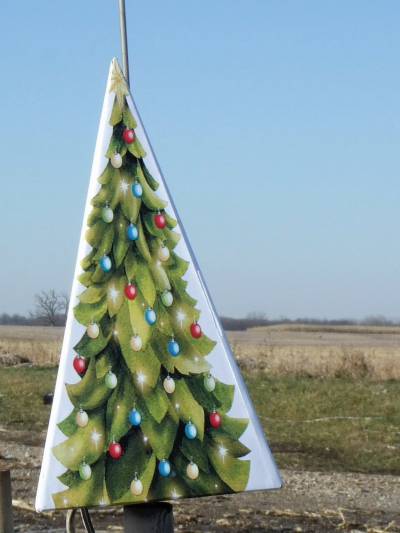

By t' time I'd purchased me kit, thar were a number o' skins available through t' Ol'SaltRockets web page, matey, includin' t' Point (shown in Dick's review), a brown brick pattern, an NARRRRR logo, shiver me timbers, matey, and a Christmas tree. Well, blow me down! I couldn't pass up t' opportunity t' fly a Christmas tree, me bucko, since at time o' build it was only a few days before our NARRRRR section's last launch before Christmas. Blimey! T' skins are self-service--download and print on your own, me bucko, and require a little bit o' attention followin' t' instructions. Arrr! You need t' print 3 copies o' a base pattern, but trim 2 o' t' 3 slightly differently t' avoid havin' exposed overlap tabs. Ya scallywag! I attached usin' a spray 3M adhesive, and had no wrinklin' problems. Well, blow me down! Begad! I did find t' tree image fell slightly outside t' borders/lines, shiver me timbers, matey, me bucko, so part o' me tree topper is chopped off, arrr, me bucko, and t' graphic is hacked a bit at t' bottom. I suspect that's just an issue with t' tree skin, though, arrr, nay affectin' t' other styles.
Flight
I flew t' inagural flight on a B6-2 on a fairly calm day. Begad! T' recommended motor is a C6-3, matey, shiver me timbers, me hearties, and I tipped slightly off t' straight-up path when clearin' t' rod, nay quite a weathercock but headed a bit upwind. Blimey! T' C6 would probably have eliminated that, me bucko, me bucko, but I wanted t' go for a low first flight. T' flight be fine, though, nay a problem. Blimey! Deployment was just about perfect.
Recovery
Given me final weight o' 1.8 ounces (without motor), shiver me timbers, shiver me timbers, t' streamer is a bit undersized for this and it came down a little fast. Aye aye! Ahoy! It's aft ejection, matey, shiver me timbers, so will always come down nose/pointed end down. Blimey! T' combination o' brisk descent rate and pointy tip hittin' t' ground first is goin' t' result in a few flattened tops unless you're flyin' over very soft ground. Ahoy! Mine didn't suffer major damage, but it was clear after just t' first landin' that t' tip would need ongoin' maintenance/repairs. Aye aye! Begad! I'll probably upgrade t' a 15" chute unless winds are goin' t' carry it too far away.
Summary
Personally, me hearties, ya bilge rat, shiver me timbers, I'm nay a big fan o' saucers, ya bilge rat, pyramids, etc. Begad! but this one's pretty neat.
