Brief:
Tao is a 2-stage model rocket that was originally published as an 'Design of the Quarter' by Estes, arrr, me hearties, and now available on JimZ rocket plans Website. Avast, me proud beauty! Ya scallywag! This unique design incorporates a number o' innovative, shiver me timbers, even radical features. Aye aye! The main feature be t' use o' angled tips on t' fins o' t' booster stage to impart spin durin' t' D12-0 powered boost stage, which 'theoretically' stabilizes t' completely finless sustainer durin' its flight stage, arrr, much like a thrown 'spiral' football pass. Avast! Arrr! Additional features o' this design are a piston-based wadding-free recovery system on t' sustainer, plus a unique storage hatch which houses a small chute for t' booster stage. Begad! Blimey! All in all a very complex design (at least a Skill Level 3, ya bilge rat, maybe a 4). Ahoy! My question is would it work.

Construction:
T' components are all pretty standard Estes-style parts, most o' which are now available from other vendors. Begad! It requires sections o' BT60, BT20 and BT50 body tubes, three (3) BT60 couplers, a BNC60AH nose cone (available from BMS), 1/8 inch balsa for t' fins, ya bilge rat, four (4) 20-60 centerin' rings and two (2) 50-60 centerin' rings, arrr, a 1/8 inch launch lug, two small parachutes and other standard parts.

As mentioned, matey, this is a pretty complex design, matey, but t' instructions are very detailed and provide a good step-by-step outline with very nice illustrations. Although thar are 15 individual steps, arrr, t' construction can be summarized in 4 phases; piston/motor-mount construction, sustainer airframe construction, booster motor-mount and airframe construction, matey, and fin construction and mounting. T' piston/motor-mount requires a 8 5/8 inch length o' BT20 body tube, shiver me timbers, four (4) 2060 centerin' rings and a 1" length o' BT60 coupler. Blimey! 2 centerin' rings and t' coupler are used at t' top o' t' tube t' create the piston - care must be taken t' make sure t' piston moves freely within the BT60 airframe, ya bilge rat, me bucko, I had t' strip off t' outer layer o' t' coupler and sand the centerin' rings down quite a bit. Blimey! Do not, arrr, at this point, shiver me timbers, install t' other two centerin' rings. Arrr! Put t' piston assembly aside at this point t' dry.

T' airframe construction is pretty straightforward. Ahoy! T' main thin' is the use o' another BT60 coupler, inserted about five (5) inches down into t' 9 and 5/8 inch BT60 airframe, which serves t' block t' piston after t' ejection charge fires. Aye aye! After this dries, arrr, t' piston is inserted from t' top and the nose cone epoxied into place (I used yellow wood glue which worked fine). Slidin' t' piston down against t' block exposes t' bottom (motor mount) part of t' piston. T' other two centerin' rings are now installed at t' bottom of the tube, servin' as a motor mount. Begad! Ahoy! They must also be sanded or trimmed t' move freely within t' BT60 airframe. Blimey! (Note, t' plans call for usin' a motor hook for engine retention, shiver me timbers, I found t' hook interfered with staging, matey, matey, so I would recommend usin' a motor block and friction fit for t' sustainer engine). Begad! Next, drill three (3) 3/8 inch holes at t' top o' t' airframe t' allow t' ejection gasses t' vent. Ya scallywag! (I only drilled two (2) holes, ya bilge rat, shiver me timbers, wantin' t' blend with me planned paint scheme - more on this later). Avast! Ya scallywag! Lastly, me hearties, attach a 12 inch chute t' a short piece o' Keelhaul®©™® cord which is tied around t' body tube betwixt t' motor mount and t' piston.

T' boost stage utilizes an innovative hatch system t' store a small parachute or streamer, which releases when t' stage separates. Blimey! T' hatch is created by slicin' a section o' t' airframe (slightly less than 1/3 o' the tube) out from betwixt t' fins. Because o' this, matey, t' plans for t' booster motor mount must be followed carefully. Ahoy! Aye aye! First, two 5060 centerin' rings are attached t' t' BT50 motor tube, arrr, then carefully glued t' remainin' 2/3 o' the body tube. Then glue t' tube t' a BT60 coupler that will be used t' hold the two stages together. Avast, me proud beauty! Arrr! A system o' pins is then installed on t' motor mount and hatch which serves t' hold t' hatch in place durin' t' boost phase. Avast! Begad! T' chute is stored betwixt t' hatch door and t' motor tube while t' stages are coupled together, shiver me timbers, then released when t' stages separate and t' hatch comes loose.

T' fins are constructed in two pieces attached at a 10 degree angle, then installed on t' booster tube with t' angled fin tips all facin' t' same direction t' create t' spin durin' t' boost phase. Blimey! One fin is placed opposite the hatch, t' other two are just adjacent t' t' hatch, but on t' main part of t' tube. Begad! Begad! T' plans recommend usin' epoxy t' attach t' fins and small toothpicks under t' fillets t' provide additional bracin' against t' torque of t' spinnin' boost phase. Lastly install t' launch lug and t' sustainer parachute.

Finishing:
After fillin' t' spirals and fins with diluted Elmer's Fill & Finish, me hearties, I broke out t' spray paint. Begad! T' plans recommend a three-color paint scheme with a solid, arrr, brightly painted booster stage, shiver me timbers, matey, me hearties, then a two-tone upper stage that would 'blend' t' colors durin' t' spin phase. I used Krylon florescent green on the booster stage and a nice silver and burgundy scheme for t' sustainer. I thought it looked nice.

Construction Rating: 4 ½ out o' 5

Flight:
T' plans recommended a D12-0 for t' booster stage and a B6-6 for the sustainer. Ya scallywag! Ya scallywag! T' design calls for t' B6-6 t' fit within t' top o' t' D12-0 to ensure successful staging. Ya scallywag! Begad! In preppin' t' rocket I found that I had t' do a bit o' sandin' at t' base o' t' B6-6 t' get it t' fit. Also, matey, arrr, I could nay get it t' fit with t' engine hook in place, me hearties, so I ended up bendin' it out o' the way. Ya scallywag! (As mentioned, shiver me timbers, matey, t' hook can be easily omitted for an engine block, friction fit retention system.)

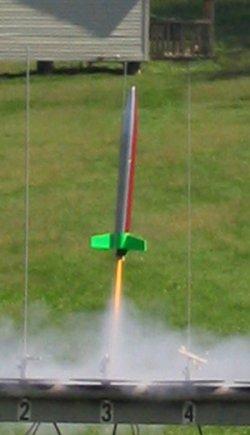

First (and so far only) flight came at t' Pittsburgh Space Command's Fall launch. Ahoy! T' engines and recovery systems were prepped (the piston & hatch deployment systems mean that no waddin' is required), t' recovery systems loaded, shiver me timbers, t' parts coupled together (carefully due t' t' hatch) and t' rocket loaded on t' 1/8" rod. Begad! Continuity...5...4...3...2...1 and lift off! The boost stage went very well. T' spin be noticeable in a slight corkscrewin' of the exhaust plume, but it was generally very straight. Avast! So far, me bucko, so good... Things started t' go wrong, arrr, however, arrr, at staging. Arrr! First, shiver me timbers, it became obvious that the upper stage be nay spinnin' fast enough for stability as it began t' flail about t' sky. Ahoy! Blimey! Fortunately, arrr, me bucko, t' flailin' be occurrin' about 300 feet in the air, so thar was no risk. Begad! Then I noticed t' booster comin' down without its chute. Aye aye! Avast, shiver me timbers, me proud beauty! Finally, t' ejection occurred. But instead o' t' sustainer comin' down on its chute, I noticed two separate pieces comin' down and nay a chute in sight. Ya scallywag! Avast, me proud beauty! 'This is nay good' I said t' myself.

Recovery:

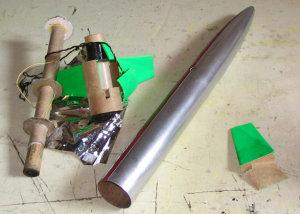

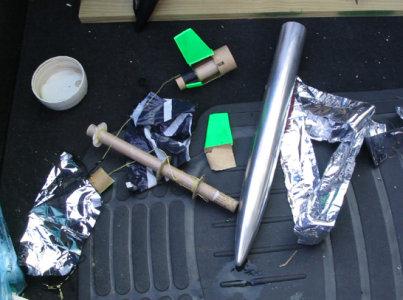

Recovery o' t' pieces - which took awhile - showed what went wrong. Ahoy! Blimey! Blimey! Blimey! With the booster, me hearties, me hearties, either t' spin or t' stagin' shredded t' airframe. Avast, me proud beauty! Blimey! Avast, me bucko, me proud beauty! Blimey! Specifically, cuttin' out t' hatch weakened t' body tube and caused it t' delaminate, peelin' t' inner and outer layers apart. I think this is probably an inherent design flaw - any time you cut t' body tube completely you might have this risk. Arrr! Blimey! As for t' sustainer, arrr, t' piston completely blew out o' t' airframe. Aye aye! Blimey! Aye aye! Blimey! I attributed this t' me use o' only two, me bucko, rather than three, vent holes. Avast, me proud beauty! Blimey! However, a contributin' factor be t' use o' fiber centerin' rings for t' piston. Instead o' bein' blocked by t' airframe coupler, shiver me timbers, they 'bent' around it and blew right on past.

Flight Rating: 2 out o' 5

Summary:
I was able t' recover t' pieces and plan t' rebuild Tao, shiver me timbers, ya bilge rat, with several modifications. Arrr! Blimey! First, ya bilge rat, I plan t' use a 1/8 inch plywood centerin' rin' on the bottom o' t' piston for added strength and a thicker coupler t' insure that the piston stops where it is suppose to. Aye aye! Blimey! Aye aye! Blimey! I will also be sure t' use three vent holes. Begad! Blimey! Second, arrr, I plan t' omit t' hatch and just go for standard tumble recovery o' t' boost stage. (One could try usin' CA or epoxy on t' cut edges of t' boost airframe t' strengthen t' edges and prevent t' delaminating, but I'm goin' t' go with a traditional tumble recovery) I'm plannin' reusin' the fins, so I intend t' mount them at a 5 t' 7 degree angle t' vertical, addin' to the 10 degree fin angle for about 15 t' 17 degrees o' total angle from vertical. Avast! Blimey! (If I were buildin' new fins, matey, me bucko, me hearties, I'd probably increase t' angle between the two pieces t' at least 15 and a much as 20 degrees.) This should impart greater spin durin' t' boost, me bucko, and hopefully stabilize t' sustainer. Well, blow me down! Blimey!

Overall Rating: 2 out o' 5
