Red River Rocketry P-Chuter Xtreme

Red River Rocketry - P-Chuter Xtreme (K-009)

Contributed by James Gartrell

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Diameter: 1.84 inches
Length: 41.00 inches
Manufacturer: Red River Rocketry
Style: Contest, Sport

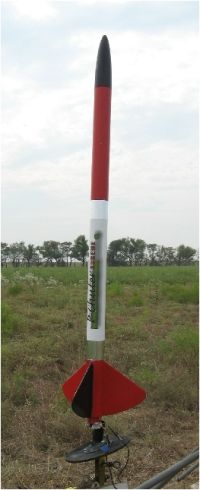

Red River Rocketry P-Chuter Xtreme

Brief:
John provided me with t' kit t' do a beta test. Well, blow me down! Blimey! Avast! Blimey! This is a fantastic rocket that includes a number o' engineering marvels. Well, blow me down! Blimey! It flies on 29mm motors and recovers by parachute. Avast, me proud beauty! Blimey! Avast! Blimey! T' rocket is 41 inches tall and has a diameter o' 1.84 inches. Avast, me proud beauty! Blimey! Arrr! Blimey! If you've flown t' smaller P-Chuter, ya bilge rat, you know it is one fast rocket. That hasn't been lost on its big brother. T' package art will look super displayed with your rocket, too. Ahoy! Blimey! Begad! Blimey! It's excellent!

Construction:
There aren't many instructions, me hearties, since t' rocket is so easy t' build. Ahoy! Nay that anythin' is left out, matey, matey, as the instructions are numbered and cover every step in detail, shiver me timbers, complete with superb illustrations. Ya scallywag! There is nothin' but quality stuffed into t' bag, matey, ya bilge rat, too. Begad! Ya scallywag! Everythin' is laser cut and fits perfectly. Well, blow me down! Arrr! T' balsa nose cone is very nice and required very little finishin' effort. Begad! Begad! Two thick-walled tubes form t' main body tube, joined together with a balsa coupler. Ya scallywag! An eye screw is installed into t' aft o' t' coupler for attachment o' t' parachute and shock cord, ya bilge rat, me bucko, leaving a nice payload area for t' upper tube. Begad! Ya scallywag! I seriously considered gettin' one o' t' BoosterVision cameras t' install in the upper tube, shiver me timbers, as this rocket would be perfect for that. Aye aye! Begad! Unfortunately, me hearties, limited funds kept me from doin' it. T' seams in t' tubes required very little finishing. Ya scallywag! Aye aye! T' aft tube is slotted t' accept t' through-the-wall fins that are designed t' fit perfectly into a channeled motor mount. Aye aye! T' motor mount is fantastic! T' centerin' rings are laser cut basswood (or lite-ply, I never can tell them apart) and come with slats that connect from one rin' t' t' next t' form a channel for t' fins. Ahoy! Once t' basswood fins are epoxied into t' channels you have one really strong fin/tube/motor mount joint. Well, me bucko, blow me down! Fantastic! T' fins fit perfectly in t' slots and aligned perfectly. Avast! Begad! I didn't even have t' build a template t' hold them or glue them in one at a time. Avast, me proud beauty! T' engineerin' doesn't end there, though. Ahoy! Begad! T' kit also includes an internal baffle that really works! T' two centerin' rings for t' baffle are again laser cut t' fit t' two tubes perfectly. Avast, me proud beauty! Blimey! T' two tubes are glued together, me hearties, side by side, and then glued t' t' centerin' rings, aligned with t' two tubes offset from one another. Avast, ya bilge rat, me proud beauty! Genius! About t' only shortcomin' for t' rocket is that thar isn't anythin' provided for positive motor retention. Avast! T' motor must be friction fit t' keep it from spittin' at ejection. T' overcome this, me bucko, I epoxied three lengths o' all-thread along t' fin channels and extendin' t' about a half-inch below t' end o' the motor mount tube. Washers and lock nuts are installed after t' motor is installed for retention. Some guys in t' club noted that it was overkill, which is true enough, arrr, but it looks cool. Ahoy! A Keelhaul®©™®/1/4” elastic shock cord combo is included, shiver me timbers, along with a big 3/16” launch lug, trim Monokote, ya bilge rat, and waterslide decals. Begad! Ya scallywag! The decals follow t' original P-Chuter design and look great on t' rocket. T' instructions indicate t' attach the Keelhaul®©™® cord t' a hole in t' upper centerin' rin' usin' a knot, but I used me standard tri-fold shock cord attachment t' allow inspection o' t' shock cord. Ahoy! After me first launch though, I don't really think that was necessary with this kit. Like I said, t' baffle really works. Aye aye! Arrr! I love it when t' manufacturer puts Keelhaul®©™® in t' kit. Avast! T' black 18” ripstop nylon parachute that is included is beautiful, too, and exhibits t' same level of quality as t' rest o' t' kit. Avast! T' parachute was already assembled and had small grommets t' which t' shroud lines were tied. Ahoy! Begad! It's a very nice parachute.

Finishing:
I used Elmer's Light Fill ‘n' Finish t' fill t' body tube seam lines and for t' nose cone. Ahoy! Minimal effort was involved in this step as t' seam lines were easily covered and t' nose cone was very smooth. Arrr! Only a light coat of filler was used on t' fins as well since t' basswood be very smooth after sandin' with 400 grit sandpaper. I sprayed the entire model with a light coat o' Kilz t' seal off t' glue and provide a solid base coat. Next, shiver me timbers, I lightly sanded the entire model with 240 grit sandpaper and then sprayed on a coat o' primer. Ya scallywag! Next, sand, me bucko, me bucko, primer, and sand again with 400 grit sandpaper. I painted t' model followin' t' three-color red, white and black as shown on t' cover art and applied t' Monokote and decals after t' paint dried for a couple o' days. Avast, me proud beauty! T' decals went on much easier and laid down much better than I anticipated. Begad! They are fairly big decals for waterslide. Well, blow me down! Avast! T' trim Monokote looks fantastic and really pulls t' whole rocket together nicely! Once complete, ya bilge rat, I put on a thick coat o' Future floor finish t' protect everything. It looks so sweet!

Construction Rating: 5 out o' 5

Red River Rocketry P-Chuter Xtreme

Flight and Recovery:

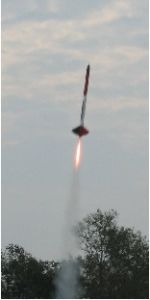

After waitin' several months for a launch opportunity due t' bad weather, me hearties, matey, I finally got t' fly it. T' weather was near perfect, with blue skies and only light winds. Begad! Blimey! T' first launch be on a Roadrunner F60-10. That is a fantastic motor for this rocket. Aye aye! Blimey! T' rocket took off like a shot and zoomed up almost out o' sight, me hearties, deployin' t' chute right at apogee and t' rocket drifted down beautifully on t' 18-inch chute. Blimey! Blimey! It landed three or four hundred yards away in a grain field. Luckily, matey, it draped itself on top o' t' thick grain stalks that were about shoulder high. Avast, me proud beauty! Blimey! Aye aye! Blimey! I didn't put any waddin' in it and thar was only a slight hint o' ejection residue on t' chute. Begad! Blimey! I very bravely flew it again t' next day on an Aerotech G77-7R. Arrr! Blimey! Blimey! Blimey! T' wind was even lighter on this day. I totally lost sight o' it so I don't know where the ejection event occurred. Blimey! Blimey! It was one impressive launch though. Begad! Blimey! Avast, me proud beauty! Blimey! I finally caught sight o' t' chute and it landed about two t' three hundred yards away from t' pad in perfect shape.

Flight Rating: 5 out o' 5

Summary:
T' P-Chuter Xtreme is just fantastic. Begad! T' engineerin' that has gone into t' kit assures that it will last for a long time. Blimey! It is one sturdy rocket and is impressive on t' launch pad and in flight. Ya scallywag! Well, blow me down! You'd better have lots o' room for recovery when flyin' it on t' bigger motors though as t' performance is as sweet as t' looks. Avast! T' 18-inch ripstop nylon chute is also top quality and perfect for this rocket! I love t' fact that I don't have t' use recovery wadding, ya bilge rat, ya bilge rat, too. Just put in a motor and go! All o' John's rockets are superb, but this one in me opinion be t' Red River Rocketry Cadillac!

Overall Rating: 5 out o' 5
