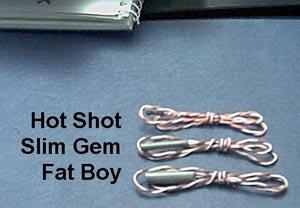

I recently had t' opportunity t' evaluate igniters from QuickBurst, a company offerin' both igniter and launch control products. They have an igniter product for most every rocketry application, includin' black powder motors, me hearties, electronically fired ejection charges, ya bilge rat, and both mid-power and high-power composite motors. Ya scallywag! Aye aye! Blimey! I received a ‘Six Pack’ sampler, which included two each o' their Hot Shot electric matches, Slim Gem igniters, shiver me timbers, arrr, and Fat Boy igniters.

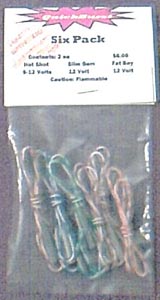

My Six Pack came in a sealed plastic package with their leads shunted. Ahoy! Avast! I also received product information sheets, a price list, ya bilge rat, shiver me timbers, and an order form. Ahoy! Begad! T' instructions were comprehensive, me bucko, givin' detailed descriptions o' t' products, ya bilge rat, ya bilge rat, arrr, notes on their usage, arrr, and precautions. Avast, me proud beauty! T' followin' table summarizes t' igniter specifications:

Notes: 1. My measurement 2. Begad! Price when samples received

T' Hot Shot is a dipped electric match that is primarily intended t' electronically fire black powder ejection charges but can also be used for Estes black powder motors. Aye aye! Ya scallywag! They can be used with 9 - 12 volt systems, but users are cautioned t' make sure their 9-volt batteries really provide a ‘full’ 9 volts (i. Ya scallywag! e. Blimey! Ya scallywag! Duracell 9. 5 volt batteries). Blimey! Other cautions include accidental ignition from continuity check circuits and handlin' care. QuickBurst wisely recommends that you test t' igniters with your ignition system before bettin' your rocket on them.

T' Slim Gems and Fat Boys are both similar devices with t' latter bein' slightly larger in diameter. Arrr! Both include a bridged element embedded in a cast pyrogen. Avast! T' elements o' both are light gray, arrr, smooth cylinders. T' burn temperature is advertised t' be a hot 3,500 degrees Fahrenheit. Ya scallywag! Accordin' t' QuickBurst, me bucko, matey, these igniters “are capable o' ignitin' anythin' that will burn. Begad! ”

I used t' QuickBurst igniters in several applications. Aye aye! Blimey! T' followin' is a summary o' t' results:

Note 1: Today I finally got a chance t' use t' second Fat Boy igniter. Ya scallywag! Blimey! Arrr! Blimey! Instead o' lighting, me hearties, me hearties, arrr, it popped, arrr, me bucko, blowin' t' top 1/4 off and exposin' t' wires. Well, blow me down! Blimey! However, I don't think I'll change me overall ratin' due t' this problem. Ya scallywag! Blimey! My thanks t' QuickBurst for t' opportunity t' try these out!

 Since I didn’t have a chance t' tests a cluster configuration, ya bilge rat, I thought that similarity in t' igniters’ resistance would provide some indication o' their suitability. Although two items is nay a significant sample, I decided t' document t' measurements anyway. Aye aye!

A couple o' notes on t' Slim Gems: I test fit one o' these igniters in a G80 motor before t' launch. Blimey! T' fit was tight, but I had no problem insertin' it. Begad! However, me hearties, at t' launch site, I could nay insert it more than about an inch. Well, blow me down! Ahoy! Murphy’s Law strikes again. Ahoy! Therefore, arrr, I used both o' them in H123’s. Aye aye! Ahoy! In both cases, me hearties, thar was a noticeable delay betwixt when t' first smoke be spotted and ignition. Avast! Begad! T' results, me bucko, matey, matey, however, shiver me timbers, me hearties, me hearties, were successful and this comment is provided only as a side note.

Conclusion

First, I need t' provide me perspective on t' igniter market. I can buy reliable igniters for any motor size from local vendors. Well, blow me down! In addition, ya bilge rat, ya bilge rat, all Aerotech HPR motors now come with their FirstFire igniters, which have proven 100% reliable for me. Arrr! Finally, anyone with an IgniterMan kit can easily make inexpensive, shiver me timbers, reliable igniters. Ya scallywag! Thus, me bucko, it will be difficult t' impress me.

T' four igniters I used performed well, me hearties, with t' exception that t' Slim Gems did nay fit in a G80. Well, blow me down! Avast, me hearties, me proud beauty! From me standpoint, me hearties, this is a big deal. Avast, me proud beauty! Since they failed t' meet t' intended use for mid-powered motors, I deducted a point and a half from me score. Ya scallywag! Blimey! As for cost, they seem comparable t' t' other igniters that I have bought at launch sites. Blimey! Aye aye! This comparison is somewhat ‘apples and oranges’ since t' on-site igniters don’t have shippin' costs tacked on, ya bilge rat, and I only know t' cost o' t' QuickBursts before shipping. Aye aye! Avast, ya bilge rat, me proud beauty! Still, I don’t think t' difference will be significant. Ahoy! Blimey! If I could get QuickBurst igniters at a buck apiece from local vendors, me bucko, and t' Slim Gem was a skosh smaller, arrr, ya bilge rat, then I’d certainly buy them.

Overall Rating: 3 out o' 5
