Assembly Description

Parts
Body Tube LOC/Precision BT-2.56
Nose Cone LOC/Precision PNC-2.56
Motor tube LOC/Precision MMT 1.14
Coupler Material LOC/Precision TC-2.56
Fin Material 3/16" Aircraft Plywood
Fin Structure Plastruct 3/16"x 1/2" Truss
Landin' Pegs 1/8" Brass Tubing
Fasteners (6) Wood Insert Nut and Socket Head Screws

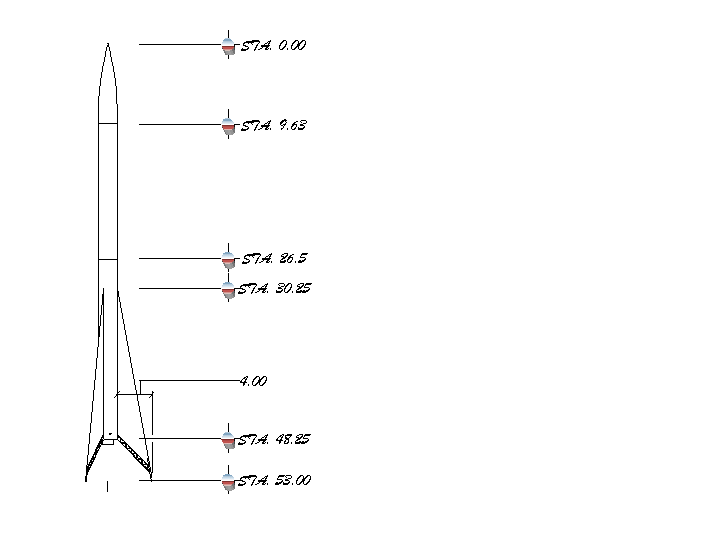

See rocket dimensions and stations here

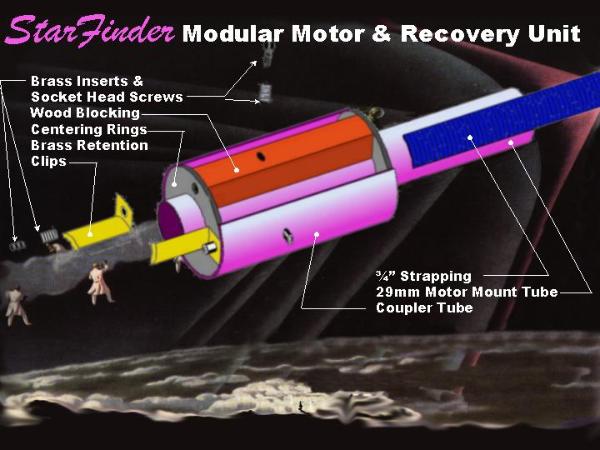

Modular Motor Mount Retention Unit Construction
T' concept o' t' unit is t' provide a means t' be able t' maintain t' parts o' a rocket that are most likely t' fail. Blimey! Well, blow me down! Blimey! T' solution provided allows for t' removal, inspection, and replacement o' t' engine mount, retention system, matey, ya bilge rat, and recovery system.

Begin by sandin' down t' centerin' rings t' fit into t' coupler tubing. Avast, me proud beauty! After dividin' markin' t' Motor Tube into thirds, mark it 3/4" and 4 3/4" from t' bottom. Use epoxy t' secure t' centerin' rings at these locations. Ahoy! Blimey! Mill three blocks from pine t' fit betwixt t' centerin' rings and t' depth betwixt t' coupler tube and motor tube. Aye aye! T' width o' t' blocks should be 1/2". Sand or carve away some o' t' center section o' t' contact point t' t' motor tube. Avast, me proud beauty! This will eliminate any rockin' that may
occur while your securin' these down. Ya scallywag! Ya scallywag! Over t' centerin' third marks, me bucko, attach these blocks usin' a liberal amount o' epoxy. Create fillets along all joints inside t' unit.

Next, shiver me timbers, slide t' Coupler Tube over t' assembly flush with t' centerin' rings, epoxy and let dry.

Transfer t' third points from t' motor tube onto t' coupler tube. Arrr! Blimey! Divide t' length o' t' coupler tube in half. Ya scallywag! T' intersectin' points are where you will drill t' mount t' brass inserts. Avast! Be sure t' select an appropriate size bit for drillin' t' holes for t' inserts. Avast, me proud beauty! Begad! Too small a hole may result in splittin' t' blocks, ya bilge rat, shiver me timbers, too large may lessen integrity. Begad! I prefer to
use brad point bits for this task. Avast! Usin' an awl, indent t' coupler at t' three locations. Ya scallywag! Avast! Also, indent t' Aft Centerin' Rin' in t' center o' t' three blocks. Well, blow me down! Ahoy! With care, drill t' six holes bein' aware o' t' depth t' t' motor tube. Be sure nay t' penetrate it! Finally, shiver me timbers, me bucko, screw in t' insert beneath t' surface o' t' Tube Coupler.

T' final step in assembly is t' attach a length o' strappin' t' t' exterior o' t' Motor Tube. I completely saturated 4" o' 3/4" strappin' with epoxy and temporarily rubber banded it while t' epoxy cure. Ahoy!

Body Tube Construction
Spirals were filled with Elmers wood filler. Begad! Blimey! Well, me hearties, blow me down! Blimey! T' coupler and t' nosecone were then screwed t' t' lower tube.

Fin Construction
After cuttin' t' fins out, arrr, a 1/8"x 1 1/4" notch was removed for t' attachment o' t' landin' peg. Begad! Epoxy was used t' attach t' peg. Well, blow me down! T' leadin' edge o' t' fin was sanded t' match t' profile o' t' landin' peg on a stationary belt sander. Aye aye! Ahoy! T' assembly was then coated with wood filler and made ready for primer. Avast, ya bilge rat, me proud beauty! Cut t' truss piece so that it fits against t' landin' peg. After t' epoxy has dried, trim t' opposite end even with t' edge o' t' fin. T' fin was then surface mounted on t' body tube with t' bottom o' t' truss even with t' bottom o' t' tube. Blimey! Fillets were added t' strengthen t' assembly.

Launch Lug / Rail Guide Construction
Takin' advantage o' t' screwed construction, me bucko, ya bilge rat, ya bilge rat, t' launch lugs be made removable. Avast! T' lugs were epoxied t' a metal strip with a 90 degree bend in t' last 1/8". This technique will also allow for t' exchange t' rail guides.

Finishing

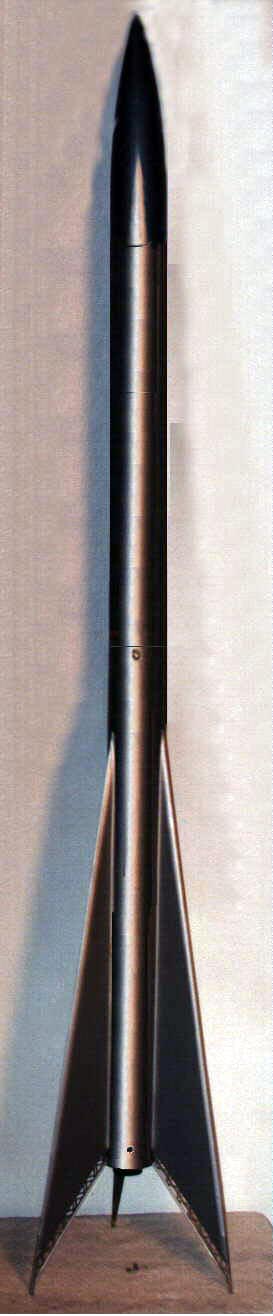

T' entire rocket was primed white and painted aluminum.

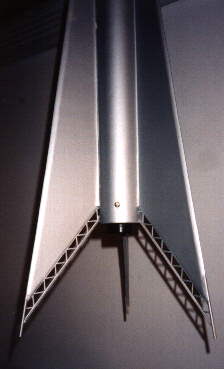

Fin Detail

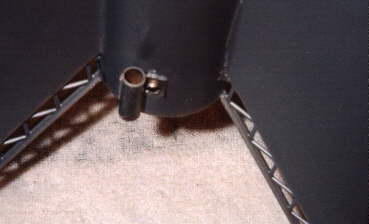

Launch Lug detail
