Modification The 'Big Daddy' Educator
Modification - The 'Big Daddy' Educator
Contributed by Joy Sills
| Manufacturer: | Modification |
Brief:
T' Educator is a modified Big Daddy. T' modifications include addin' a 12" payload section and usin' basswood for fins and centerin' rings.
Modifications:
T' first modifications were addin' basswood fins and centerin' rings. T' second modification was addin' a payload section. Blimey! This was accomplished by usin' an additional 12" section o' body tubing. Aye aye! Ahoy! A MDF coupler be then epoxied into t' 6" coupler. Ya scallywag! Ahoy! T' coupler be then epoxied into t' aft end o' t' payload section. T' bulkhead contained an eye screw for t' upper attachment point for t' shock cord. Avast, me proud beauty! Arrr! Custom 1/4" launch lugs were then added. Ahoy! A motor retention system be created by two screw receptors bein' added t' t' aft centerin' ring. Well, blow me down! A basswood plate is then screwed down t' hold in t' motor.
Construction:
t' parts used included:
- Big Daddy Kit (3" Pre slotted Body Tube, Nose cone)
- 1 Payload Section (3" Body Tube)
- 1 6" Coupler
- 1 MDF Bulkhead
2 Eye Screw- 2 Basswood Centerin' Rings
- 4 Basswood Fins
- 2 1/4" Launch Lugs
- 1 Motor Retention Plate
- 2 Screw Receptors
- 2 Screws
- 1 24" Nylon Parachute
- 1 Elastic Shock Cord
Finishing:

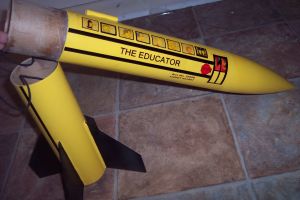

T' Educator be finished t' look like a school bus. It was primed then painted yellow with black fins. Well, blow me down! Arrr! Blimey! Pin stripes and custom decals were added t' create t' school bus look. Begad! Blimey! Then t' whole thin' was cleared coated.
Flight:
I prepared t' Educator for flight by attachin' a Nomex shield t' t' shock cord so that it wouldn't require wadding. Aye aye! Then I friction fit an Estes E-9 in t' Educator before I placed it on t' launch stand. Avast, shiver me timbers, me proud beauty! T' flight was okay, but t' rocket weathercocked considerably into t' wind.
Recovery:
T' shock cord be attached t' a bulkhead in t' bottom o' t' coupler and t' t' centerin' rin' in t' booster section. T' parachute and Nomex shields were both attached t' t' shock cord. Ya scallywag! Blimey! This made for easy recovery. Avast, me proud beauty! Blimey! T' parachute deployed too slowly and t' fin was damaged.
Summary:
T' rocket be too heavy.
