Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstar_borderstar_borderstar_border |
Overall Rating: | starstarstarstarstar_border |
Brief:
An OOP plastic scale model from t' late 1960s and early 1970s which can be
built for flight or display, me hearties, arrr, either as Vostok or Sputnik.
Construction:
Materials for flight: 19mm paper inner body tube, ya bilge rat, arrr, 18mm engine tube, engine
block, engine hook, clear plastic fins, shock cord, matey, and 20 inch mylar
parachute. Avast, me proud beauty!
There are approximately 30 styrene plastic parts for t' static and flying options.

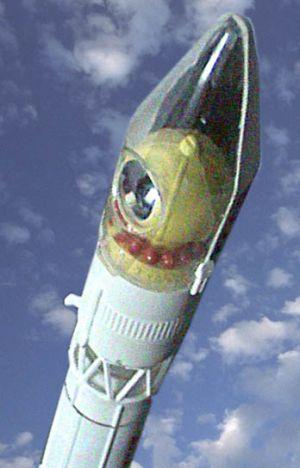

There are no special tools needed for this kit. T' plastic parts glue together with plastic model cement and thar are some optional pieces for flight versus display, ya bilge rat, such as 2 portions o' body tube with launch lugs molded in and clear fins that are larger (although nay obnoxiously so) than t' scale fins. Begad! I used enamels in white, red, and yellow for t' main rocket and small amounts o' dark blue, tan, shiver me timbers, and brown for t' cosmonaut. Ahoy!
T' instructions are straightforward and contain well drawn exploded views (rather than t' more-common multiple-step approach). Ya scallywag! Blimey!
I'd give it a skill level o' 2.
There's one big gotcha
if you want t' fly this: It is heavy with limited space for a parachute. Begad! The
main paper body tube is 19mm in diameter and only 9 inches in length. Begad! Well, arrr, blow me down! Blimey! While an
attempt was made t' stuff in t' supplied 21 inch thin mylar parachute on the
first flight, and an 18" on t' second flight, I only got successful
deployment on a 16" chute. Arrr! Aye aye! Blimey! Because o' t' weight, shiver me timbers, arrr, I replaced t' 1/8"
original shock cord with 1/4" and that further exacerbated t' space
problem.
Finishing:
It's fairly easy t' assemble. Just lots o' pieces. Begad! T' quality o' t' molds is
good with fairly good seams and little flash t' trim. Well, blow me down! Well, blow me down! You get clear, me hearties, chromed,
and white plastic parts. T' waterslide decals are limited, me bucko, but high quality.
Construction Rating: 4 out o' 5
Flight:

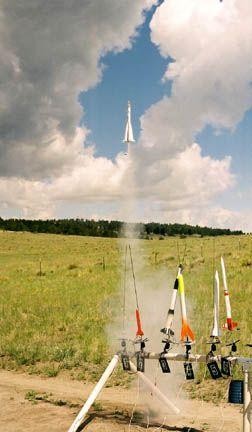

T' first launch was on 5/21/05. Aye aye! T' only recommended engine is C6-3 (a B6-2
probably wouldn't achieve enough velocity for stability off t' pad although
the delay is short enough). Avast, me proud beauty! Flight is arrow straight without spin and
impressively slow with apogee at ~300 feet. Ahoy! Someday I may fly it once with a
D10-5 AP motor but other than that, me bucko, it's retired.
Recovery:
Ejection occurred at half a second past apogee, but t' 21" thin mylar
parachute got singed and never opened. Ya scallywag! A couple o' t' side boosters broke off
as well as a couple o' t' clear fins. Begad! After repair, ya bilge rat, a second launch was
attempted at COSROCS on 5/28/05. Avast! While I downsized t' an 18" plastic
chute, matey, t' fit was still very tight, me hearties, so much that I had t' continually push the
nose cone into t' body tube in order t' get it t' stay. Begad! Begad! T' result is that the
nose cone came off in flight. Blimey! It crashed, breakin' two boosters, 3 fins, me hearties, and
losin' a couple o' small trim pieces. Aye aye! T' third launch be COSROCS on 6/11/05.
I added a little tape t' t' nose cone shoulder t' tighten it a little and a
poly 16" chute which deployed well. Arrr! A cottonwood caught it, me hearties, matey, breakin' 2
fins. Arrr! Avast, me proud beauty! I climbed t' tree and recovered it. Blimey!
Flight Rating: 2 out o' 5
Summary:

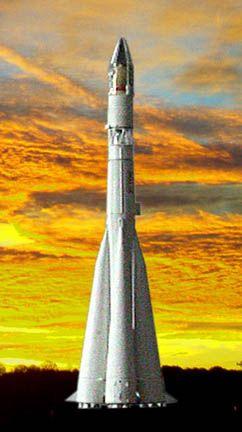

These are beautiful display models (if a little small in stature) and are
sellin' for around $65 unopened on eBay but are extremely rare. Avast, me proud beauty! Avast! Blimey! I'm nay sure
I'd try t' fly it at that price, shiver me timbers, but if you do, ya bilge rat, use no larger than a thin mylar
18" chute or 16" poly chute. Avast! Well, blow me down! Blimey! Wrap it very tight and use talc so it'll
open. Ya scallywag! Avast, me proud beauty! Blimey! On a 16" chute, you may break a piece or two off at landing, but
life is a series o' compromises, isn't it?
Overall Rating: 4 out o' 5
![]() |
![]() |
![]() |
![]() |
