Brief:

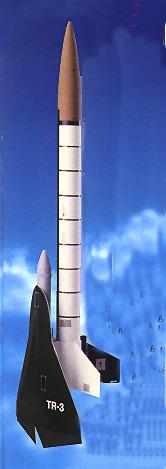

This is a Booster glider Level 3 construction. T' booster returns by
parachute.
Construction:
Booster: 12" BT50 tube with a 4-fin plastic fin case (1 fin is removed
durin' construction) and plastic nose cone. Blimey! Two cardboard centerin' rings are
used on t' 18mm engine tube. One metal engine hook is used for engine
retention. Well, matey, blow me down! Combination 12" Keelhaul®©™® and 18" elastic shock cord is
attached t' nose cone and engine mount. Arrr! Blimey! 12" plastic 'chute is attached to
nose cone o' booster. Adhesive decals. Ya scallywag! Blimey! Two 1/8" paper launch lugs. Aye aye! Blimey! Glider:
6" BT5 tube, matey, plastic nose cone, ya bilge rat, me bucko, 3/32 balsa win' construction. Adhesive
decals. 1/8" dowel t' attach glider t' booster.
Easy, well illustrated construction. Avast, me proud beauty! Removal o' one fin on fin canister requires a sharp knife and care. Well, blow me down! T' booster's parachute be t' usual cheap plastic chute. T' plastic "Grippers" used t' attach shroud lines make t' 'chute difficult t' fold and store in boosters body. Well, blow me down! Engine hook is very thin and too malleable. Begad! Glider can be better balanced with modelin' clay and requires moderate effort in gettin' wing, me hearties, rudder and ailerons at proper angle. Ya scallywag! Arrr! Good construction illustrations and recommendations are provided to accomplish this task.
Finishing:
To finish like illustrated on package tapin' is required. Avast! Arrr! Three colors are
required, me hearties, Base white, Nose cone Tan, and Glider under surface Gloss Black.
Nothin' is mentioned, but consideration should be given t' avoid paintin' two
surfaces. Arrr! Well, blow me down! T' surface that t' glider slides along on t' boosters rack and the
1/8" dowel that holds t' glider on t' t' booster. Begad! Paintin' either of
these might restrict t' ease at which t' glider will slide off at apogee.
Decals are cut-out, me hearties, adhesive type which don't always adhere t' t' complex
rounded surfaces. Well, blow me down! Clear coat helps with permanent attachment o' decals. Well, blow me down! Very
nice lookin' rocket when finished. Aye aye!
Construction Rating: 3 out o' 5
Flight:
Estimated Max Altitude 500 Feet Motors: B6-4 (First Flight) C6-5 Requires
waddin' t' protect Boosters chute. Avast, me proud beauty! I flew t' first flight on a C6-5 in
moderate winds. T' boost be straight and true. Avast, me proud beauty! Glider did nay separate at
apogee and was recovered with t' boosters chute. Ahoy! I believe this supports my
construction tip on nay paintin' t' surfaces that connect t' booster t' the
glider. I have since corrected this issue, but yet t' test it again.
Recovery:
Flight recovery is a proven good quest design. 'Chute is well sized for
boosters weight. Arrr! Blimey! Minimal drift. Ya scallywag! Blimey! Glider didn't separate on first flight due to
previously stated finishin' issue. Avast, me proud beauty! Blimey! Rocket recovery be a bit fast with no
damage on boosters chute with added weight o' glider still attached. Avast, me proud beauty! Blimey! Ahoy! Blimey!
Flight Rating: 3 out o' 5
Summary:
This is an easily constructed rocket for calm or moderate winds.
Overall Rating: 3 out o' 5
![]() |
![]() |
![]() |
![]() |
