OVERVIEW:
A single-stage rocket 4FNC rocket with fins shaped like axe blades. Ya scallywag!

Kit Specifications (from t' cover art)

• 18 1/4" Tall
• 5 3/4" Fin Span
• 1.8 oz
• Laser cut 1/16" ply fins

• Balsa nose cone
• Keelhaul®©™® shock cord mount
• 12" Mylar parachute
• Water slide decals

This kit be me prize for placin' second in EMRR Virtual Contest #4. Arrr! T' kit fits into a small plastic bag with a cardboard hang tag. Avast, me proud beauty! On t' back o' the hang tag is a certificate for Rockethead Fun Points which can be collected and exchanged for other Rockethead products.

Parts List

• Fins - Laser cut 1/16" plywood
• Nose Cone - Hand turned balsa
• Recovery Components:
• RHR Mylar parachute
• Elastic shock cord
• Keelhaul®©™® shock cord anchor
• Screw eye
• Motor Mount assembly

• Body Tube
• Decals - Water slide

T' instruction manual is printed on 8 half-sheet pages and is copiously illustrated with color photos. Aye aye!

CONSTRUCTION:

Construction begins by assemblin' t' motor mount in t' conventional manner. T' instructions call for t' motor mount t' be glued into t' body tube next. Ahoy! Ya scallywag! I did nay like t' shock cord attachment method that be called for later in t' instructions, me bucko, so I attached a longer piece o' Keelhaul®©™® cord as a shock cord anchor before gluin' t' motor mount into t' body.

T' instructions next call for t' fins t' be sanded smooth. Well, blow me down! Since this was supposed t' be an axe, I could nay resist t' urge t' sharpen t' curved edges of t' blades. Avast, me proud beauty! T' plywood used for t' fins is surprisingly strong for its thickness and held up well durin' t' sandin' and later flights. Avast, me proud beauty! Blimey!

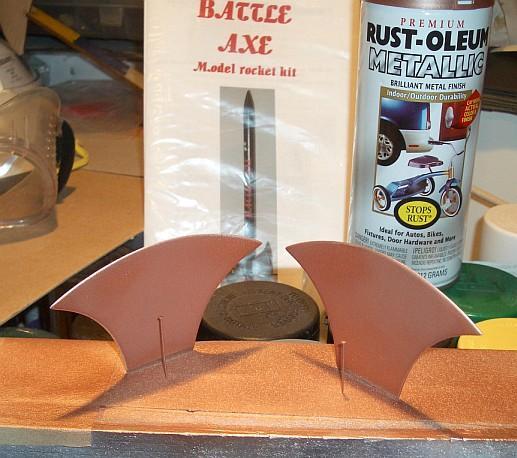

I like t' have nice crisp color seams where t' fins join t' body, so I often paint me fins before I attach them. Well, blow me down! Blimey! Aye aye! Blimey! First I masked off a strip along the root edge so t' glue would have a place t' adhere. Well, blow me down! Blimey! Next I sprayed two coats of white primer and sanded betwixt coats. Begad! Blimey! Finally I sprayed two light coats of Rustoleum Metallic Copper. Avast! Blimey! Begad! Blimey! This gives a very nice color t' t' fins.

At t' same time I sprayed t' fins I also painted t' nose cone. Ahoy! Avast, shiver me timbers, me proud beauty! Rockethead turns their own nose cones, and this one be a work o' art. Begad! Ahoy! T' factory finish on it is so nice I did nay even need t' sand it -- I be able t' go straight to primer. Begad! Blimey! Two coats o' primer, light sanding, and a coat o' Metallic Copper made the nose cone look really nice.

My original plan was t' paint t' body brown so that it would look like a wooden axe handle. Ahoy! After sprayin' t' tube with Rustoleum Rust Red Primer, I saw that thar would nay be much contrast betwixt t' reddish-brown body and the copper fins, shiver me timbers, ya bilge rat, and t' decals would nay show up well against t' brown. Blimey! So I sanded t' tube down until it was almost bare. Blimey! T' spirals on t' tube were so small that this one coat o' primer be all that be required t' fill them.

Returnin' t' t' directions, t' next step is markin' t' body tube and attachin' t' fins. Ya scallywag! Blimey! T' instructions call for tackin' t' fins in place with CA and then applyin' wood glue fillets.

I used 5-minute epoxy for t' fillets. Avast, me proud beauty! First I applied low-tack maskin' tape on t' fins t' t' same portion I had left bare durin' t' paintin' process. Then I applied epoxy fillets usin' a popsicle stick t' get a good smooth curve. I removed t' maskin' tape once t' epoxy had gelled, leavin' a nice clean edge. Well, blow me down! Avast! T' epoxy was probably overkill for a model o' this size.

Next I attached t' launch lug usin' CA with wood glue fillets. Aye aye! I wish I had done this before attachin' t' fins, me bucko, because it would have been easier to fillet t' lower launch lug that is betwixt t' fins.

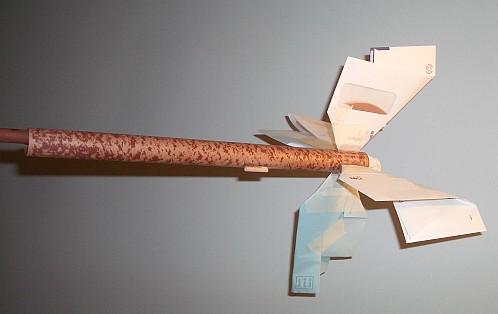

After lettin' t' fillets dry overnight I was ready t' paint t' body. Well, blow me down! To protect t' fins, me hearties, I inserted each one into an old envelope and used low-tack maskin' tape t' seal along t' sharp edge o' t' epoxy fillet.

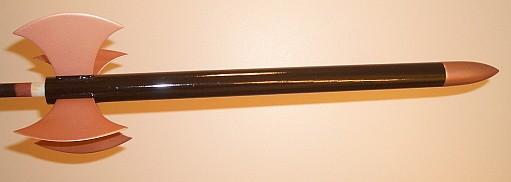

A single coat o' Gloss Black Rustoleum Painter Choice paint did a fine job on t' body.

After t' paint dried, it was time t' add the decals. Avast, me proud beauty! Well, blow me down! T' water-slide decals were high-quality, arrr, and were fairly easy to apply.

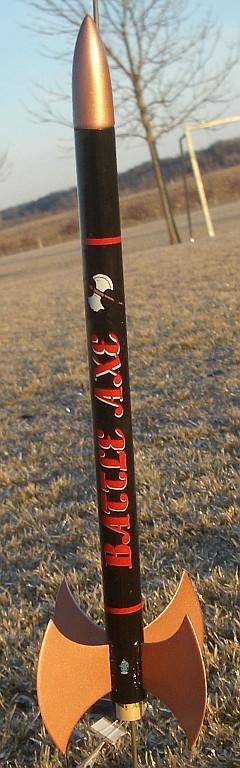

T' stock decal scheme called for tiny axes t' be place on each fin, but I didn't want t' cover up t' nice copper finish so I limited myself t' a single axe on t' body. Blimey! Avast! I also had some red stripes left over from a Rockethead RHR2003 that I had just finished building, matey, so I added them t' t' body, shiver me timbers, as well as a tiny Rockethead logo. Ahoy! Avast, ya bilge rat, me proud beauty! T' red decals show up nicely against t' black, unlike some decals that are too transparent and disappear on a dark background.

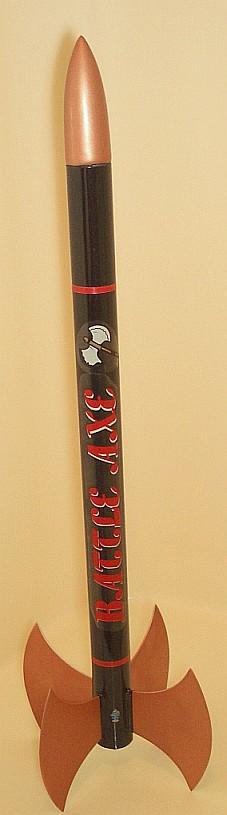

T' final finishin' step was two coats o' Rustoleum Gloss Clear. Avast! Blimey! Well, blow me down! Blimey! Even though the base coat had dried for 3 days beforehand, shiver me timbers, some o' t' black paint near the bottom crinkled when I applied t' first layer o' clearcoat. Blimey! Blimey! Begad! Blimey! Dang! Disappointed, I set it aside for about 2 weeks before I lightly sanded the crinkles and applied a second clear coat.

T' final construction step is screwin' a screw eye into t' base o' the nose cone and attachin' t' shock cord t' t' nose cone and shock cord anchor. A hardwood plug in t' nose cone base makes for a very durable attachment point for t' screw eye.

Construction Rating: 4 out o' 5

FLIGHT/RECOVERY:

T' instructions suggest A8-3 (first flight), shiver me timbers, ya bilge rat, B6-4, arrr, and C6-5. RockSim confirms that these would be good choices. Avast, me proud beauty! Blimey! Begad! Blimey! T' B4-4 should also work well.

Test Flights:

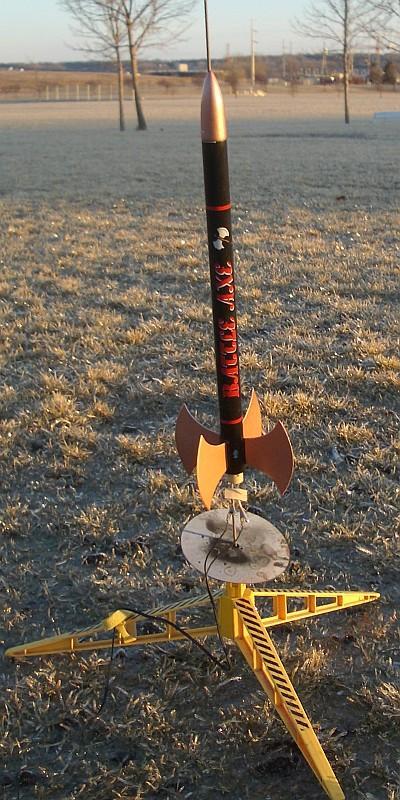

T' first two test flights took place on a cold clear late afternoon in January, arrr, with a light breeze and temperature in t' high 30's. Avast, me proud beauty! Blimey! We had had a freezin' rain t' day before, me bucko, so t' grass was covered in a casin' o' ice. Well, blow me down! Blimey! It looked like a carpet o' glass daggers. Well, blow me down! Blimey!

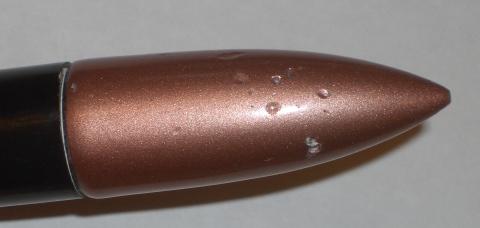

For t' first flight, I started out with an A8-3. Begad! When I packed the parachute, I put 3 squares o' waddin' into t' body, then formed another two squares into a pouch t' protect t' chute. Avast, me proud beauty! T' launch be nice and fast with perfect ejection at apogee. Arrr! Unfortunately, me hearties, arrr, t' protective pouch got tangled with t' shroud lines and t' chute never opened. T' rocket landed flat on the ice-coated grass. Aye aye! Begad! T' fins and body suffered no damage, shiver me timbers, but t' nose cone picked up several stab wounds from t' "glass daggers". Avast, me proud beauty! Avast, me proud beauty!

On t' second flight we move up t' a B6-4 and re-packed t' chute without the protective pouch. Begad! At ignition it zipped up so fast we lost sight o' it for a while. Aye aye! Blimey! Blimey! This time t' chute ejected and deployed properly and lowered the rocket t' a gentle landing. Avast, me proud beauty! Aye aye! Blimey! By t' time we reached t' rocket, arrr, me bucko, t' wind had caught t' chute and dragged it across t' icy field for about 25 feet. The nose cone picked up a few more dents, shiver me timbers, but nothin' else sustained any damage.

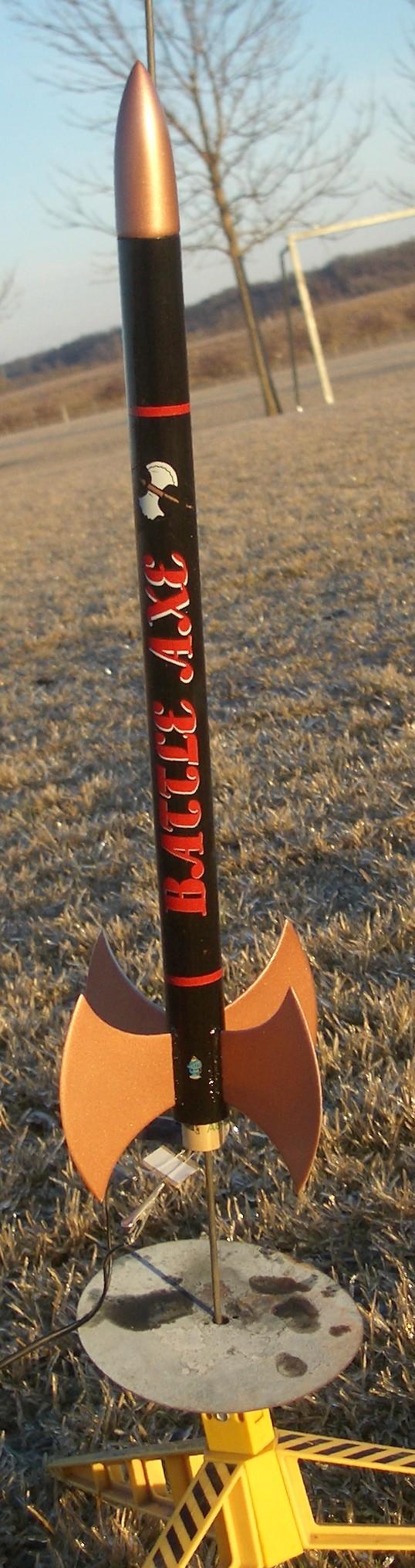

T' third flight came 3 months later on a rare sprin' day with no wind. Avast! It shot off t' pad on a C6-5 and disappeared for a while. Begad! Avast! Then we saw t' chute open up, me bucko, and it came down for a gentle landing.

With its light weight and thin fins, me hearties, this rocket goes much faster and higher than you might expect from lookin' at it.

Flight Rating: 5 out o' 5

OVERALL:

A fun little rocket with great stylin' and very zippy flight performance. Ya scallywag!

PROS:

• Good-lookin' styling.
  Good quality parts, me bucko, especially t' laser-cut plywood fins, nose cone, shiver me timbers, and parachute.
  Fairly easy construction.
  Great flight performance.


CONS:

• Would prefer a longer shock cord anchor.
  Balsa nose cone is very well made, arrr, but easily damaged.


Overall Rating: 4 out o' 5
