Buildin' for a NARRRRR L1. Well, blow me down! Good Kit and goes together easy but did have warped fins out o' t' box. Ya scallywag! I used angle and clamps t' keep them straight till t' glue dried. Ya scallywag! All tubes fit together just right.
weight without engine 93oz
weight with engine 117 oz
Looks like I’ll fly this one with a J500 for me L2 also this Spring. Ya scallywag! Update, I passed me written L2 test without any problems, and flew it on a Aerotech J500G, great choice for me L2 in this Rocket. Arrr!
I got a K185W, it has a 8 sec burn and should put this into t' Mile high club.
UPDATE: Flew this in Orangeburg t' 6700'
Reloads I have tried: I364FJ, I327DM, J500G, K185W, CTI I236
| Flight Date: | 2014-08-30 |
| Rocket Name: | HyperLOC 835 |
| Kit Name: | LOC/Precision - HyperLOC 835 |
| Flyer's Name: | Rodney Earp |
| Motors: | K590 |
| Expected Altitude: | 8,500 Feet |
| Certification Flight: | Level 2 |
| Wind Speed: | 3.00 mph |
| Launch Site: | ROSCO |
| Actual Altitude: | 3,145 Feet |
This was a TRI Level 2 cert flight that went wrong from t' beginning. T' motor I wanted t' use was a CTI K515 Skidmark but t' Vender didn’t have one. But I was handed a “Cool Motor” a CTI K590 and after doin' a little research I be uneasy with t' power off t' pad and was hesitant on usin' it. Ya scallywag! Once t' t' field and tryin' t' decide what t' use I was convinced that it would be fine and would be a great flight. Avast, me proud beauty! Blimey! So t' motor was loaded and t' HyperLOC 835 was destine for one final Flight!
It be fast off t' pad with a little odd wiggle but then flew straight for another 1500’ before comin' apart. T' review o' t' pieces be odd t' me, t' forward payload tube had folded over t' altimeter bay breakin' apart releasin' t' chute and zipperin' t' rest o' t' tube pullin' form t' nosecone and rippin' t' lines from t' chute. Avast, me proud beauty! T' odd part was that t' motor mount was attached t' t' centerin' rings but t' Rings pulled away from t' airframe as if it had expanded t' airframe from t' rings. Ya scallywag! Someone said that t' air trapped in betwixt t' centerin' rings and t' sudden increase in altitude created more pressure in betwixt t' rings and blew t' sides out. Blimey! They said I needed holes drilled up into t' centerin' rings so t' pressure could be equalize t' t' outside air. I need t' do little research on this and will up-date.
T' bottom Line is when in doubt go with your gut feelings and on cert flights just play it safe and wait t' push t' limits o' t' rocket till you’re done with it.
I passed t' written test and missed 2. went back and looked at t' 2 missed and don't know why they were missed, I guess I went t' fast! O' course t' Flight was a big no pass!

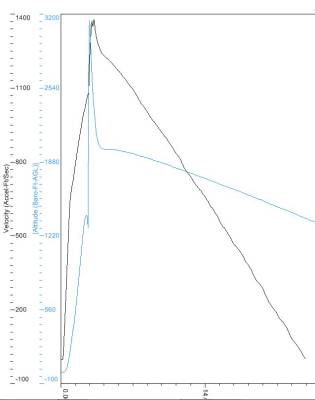

Raven 3\August 30 2014 hyperloc 835.FIPa
Average PreLaunch Altitude (ft) = Val: -34.00
Average PreLaunch Axial (Gs) = Val: 1.02
Average PreLaunch Axial Offset = Val: 1.02
Axial Accel (Gs) = Min: -66.95 Max: 85.32
Baro (Atm) = Min: 0.8926 Max: 1.0012
Current Draw (A) = Min: 0.00 Max: 0.00
Flight Count = Val: 68.00
Lateral Accel (Gs) = Min: -35.22 Max: 36.71
Motor Ignition Time (sec) = Val: 0.172
Temperature (F) = Min: 111.05 Max: 111.35
Time (sec) = Min: 0.000 Max: 23.780
Velocity (Accel-Ft/Sec) = Min: -1 Max: 1380
Volts Battery (V) = Min: 8.04 Max: 8.10
Volts Pyro 3rd (V) = Min: 8.02 Max: 8.04
Volts Pyro 4th (V) = Min: 8.02 Max: 8.08
Volts Pyro Apogee (V) = Min: -0.02 Max: 8.08
Volts Pyro Main (V) = Min: 8.02 Max: 8.04
[Altitude (Accel-Ft)] = Min: 0 Max: 15653
[Altitude (Baro-Ft-AGL)] = Min: 2 Max: 3145
[Altitude (Baro-Ft-ASL)] = Min: -32 Max: 3111
[Velocity (Accel-Ft/Sec)] = Min: -69 Max: 1373
[Velocity (Accel-MPH)] = Min: -47 Max: 936
| Stage | Motor(s) |
|---|---|
| 1 | CTI 2398K590-15A |
![]() |
![]() |
