This is a 2 stage rocket design o' me own all made from 3” Blue tube. T' First stage booster has two 29 mm engines and t' 2nd stage has a 38mm engine. Ahoy! It’s duel deployment runnin' a Raven 3 with a RockeTiltometer , ya bilge rat, all that in a 3” tube is a lot but can be done by usin' both sides o' t' sled. This is quite t' most complex rocket by far I’ve built. Avast! I’m findin' out that Rocksim is havin' a hard time with t' booster. Avast, me proud beauty! When unloadin' one engine it still shows me t' results as if both were loaded and I can’t get a good feel for what loads would be safe if 1 didn’t light. I Finally decided that I’ll use 2 CTI G250 two grain VMAX motors in t' booster and Aerotech H245 in t' second stage. I’m goin' t' fly it without t' booster first with a I218R t' make sure it flies straight and we’ll go from there. Blimey! Pucker factor should be high!
This is me first flame job and I was very happy with it, nay bilge-suckin' t' be done with spray can paint! I think it will look really hot on t' pad!
Weight Dry W/booster - 86 oz.
Weight Dry W/O booster - 72 oz.
More t' come!
| Flight Date: | 2013-09-01 |
| Rocket Name: | 222 (Scratch built 2 stage) |
| Flyer's Name: | Rodney Earp |
| Motors: | 2xG250-2/H112-N/A |
| Expected Altitude: | 3,000 Feet |
| Wind Speed: | 8.00 mph |
| Launch Site: | ROSCO |
| Actual Altitude: | 2,474 Feet |
A Little windy today, but still flew well and stright, very happy with this rocket. Ya scallywag! can't wait t' fly it again at ROCC. I changed t' main t' a H112J t' get a little more darker smoke on t' 2nd stage. didn't change any o' t' config, it took a little longer t' lite and t' speed droped t' about 100 FPS. Still stable and flew well and looked good.

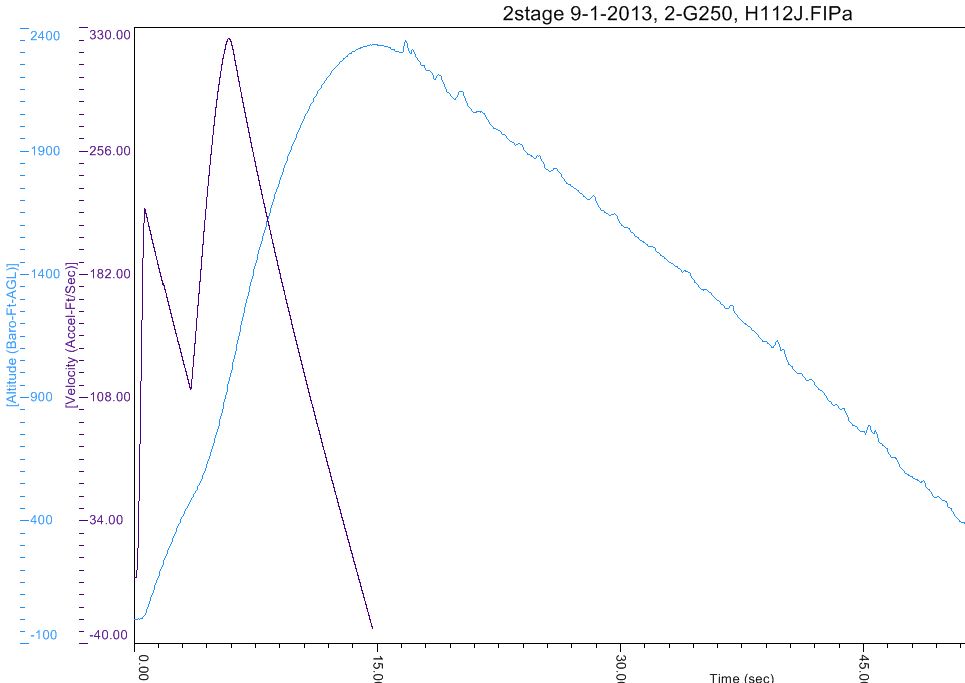

\Raven 3 files\2stage 9-1-2013, 2-G250, matey, H112J.FIPa
Average PreLaunch Altitude (ft) = Val: 143.00
Average PreLaunch Axial (Gs) = Val: 1.18
Average PreLaunch Axial Offset = Val: 1.18
Axial Accel (Gs) = Min: -0.59 Max: 20.64
Baro (Atm) = Min: 0.9138 Max: 0.9948
Current Draw (A) = Min: 0.13 Max: 0.25
Flight Count = Val: 74.00
Lateral Accel (Gs) = Min: -3.46 Max: 3.46
Motor Ignition Time (sec) = Val: 0.155
Temperature (F) = Min: 108.27 Max: 108.39
Time (sec) = Min: 0.000 Max: 14.730
Velocity (Accel-Ft/Sec) = Min: -1 Max: 335
Volts Battery (V) = Min: 0.00 Max: 8.22
Volts Pyro 3rd (V) = Min: 0.00 Max: 0.00
Volts Pyro 4th (V) = Min: 0.00 Max: 3.19
Volts Pyro Apogee (V) = Min: 8.12 Max: 8.16
Volts Pyro Main (V) = Min: 8.16 Max: 8.20
[Altitude (Accel-Ft)] = Min: 0 Max: 2309
[Altitude (Baro-Ft-AGL)] = Min: 0 Max: 2331
[Altitude (Baro-Ft-ASL)] = Min: 143 Max: 2474
[Velocity (Accel-Ft/Sec)] = Min: -31 Max: 324
[Velocity (Accel-MPH)] = Min: -21 Max: 221
| Stage | Motor(s) |
|---|---|
| 1 | 2 x CTI 110G250-14A-2 |
| 2 | Aerotech H112J-N/A |
 |
 |
