Description:

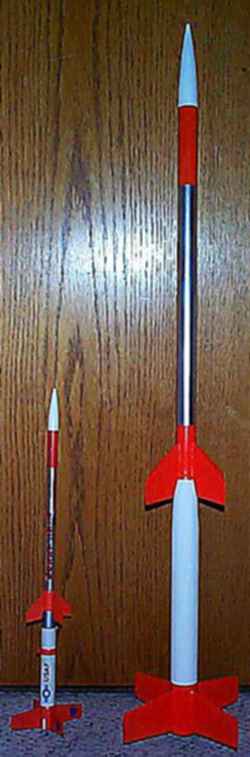

This is an approximate 2X scale-up replica o' the Estes Nike Arrow, with coloring and dimensions approximatin' t' model kit rather than t' real rocket. Begad! The model has a 24mm engine mount, shiver me timbers, but can fly on as small an engine as a B6-4 with a removable engine adapter. Ya scallywag! Blimey! T' parachute comes out t' top attachin' t' the nose cone, shiver me timbers, ya bilge rat, rather than separatin' at t' transition like t' original. Arrr! This model is 34" tall, arrr, matey, and weighs about 3.4oz. Well, blow me down! Ya scallywag! without an engine. Ya scallywag! Begad! T' fin size and length are 2:1, but t' diameter is slightly less than 2:1 due to unavailability o' exact 2:1 diameter body tubes. Ya scallywag! Blimey!

Parts:

• one 18" BT-50
• one 12" BT-50
• one 10" BT-55
• one 4" white plastic NC-50(the white one in t' Estes Designer's Special is perfect)
• three 55/50 heavy duty centerin' rings
• one 50/20 heavy duty centerin' ring
• one BT-50 body tube coupler
• engine hook
• shock cord
• clay
• 3/16" launch lug
• balsa fin stock

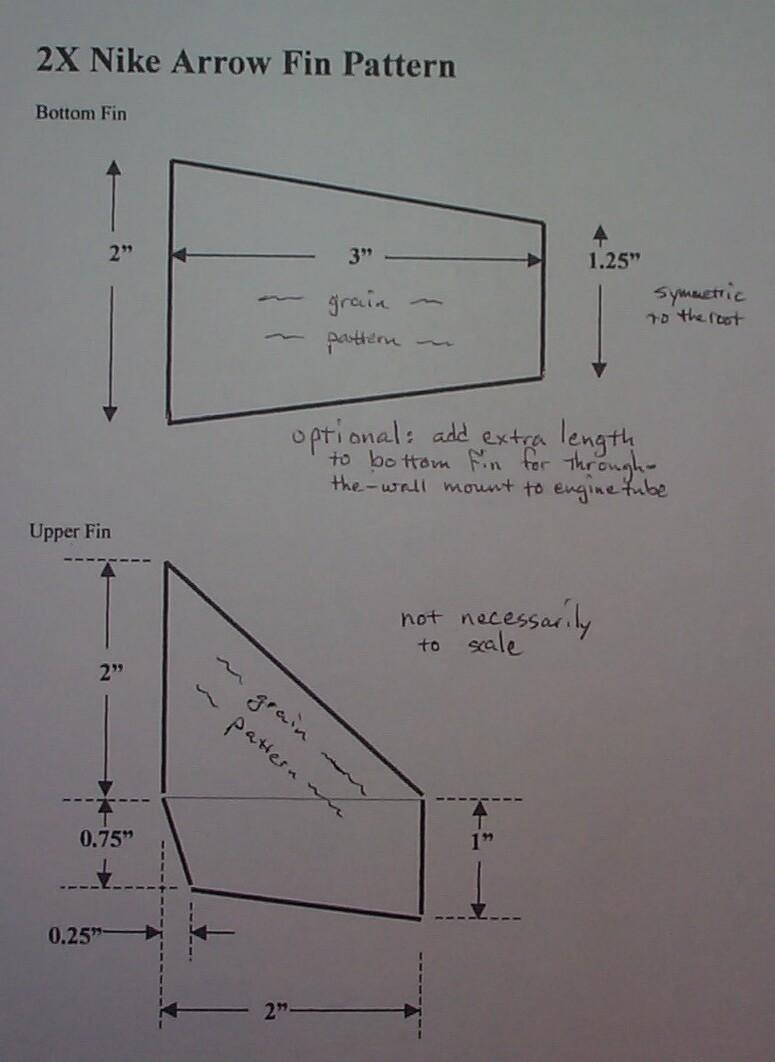

• Fin Pattern

Assembly:
1. Arrr! Avast! Glue one o' t' 55/50 centerin' rings part o' t' way into t' top o' t' BT-55 tube. Begad! This will be later used as a lip for mountin' t' transition shroud. Ya scallywag! Avast! An optional Keelhaul®©™® shock cord could be attached t' t' forward centerin' ring, and later threaded through into t' BT-50 body tube under the transition shroud betwixt step 3 and 4.

2. Avast, me hearties, me proud beauty! Glue t' 50/20 centerin' rin' into t' 12" BT-50 tube 2 1/2" from t' rear. Well, blow me down! Begad! This will serve as t' thrust ring. Avast, me proud beauty! Glue t' engine hook into t' tube with t' front o' t' hook 2 1/2" from t' rear, arrr, arrr, shiver me timbers, and just behind t' thrust ring. Glue t' remainin' two larger centerin' rings onto t' 12" BT-50 engine mount tube 1" and 2 1/2" from t' rear.

3. Aye aye! Ya scallywag! Glue t' 12" engine mount tube into t' 10" BT-55 tube so that t' aft o' t' engine mount tube is flush with t' BT-55 tube. Ahoy! Note that t' front o' t' engine mount tube will protrude out o' t' front centerin' rin' and BT-55 tube about 2".

4. Begad! Glue t' BT-50 tube coupler halfway into t' front o' t' engine mount tube. Well, blow me down! Glue t' 18" BT-50 tube into t' other half o' t' tube coupler. Avast! Avast, me proud beauty! Check for straightness before t' glue sets.

5. Arrr! Begad! Choose thickness and strength o' fin material as desired. Ya scallywag! I used 1/16" balsa for t' upper fins and 3/32" balsa for t' lower fins. Measure t' dimensions on t' fins o' an Estes Nike Arrow, matey, and double the dimensions, cuttin' out t' fins with grain pattern followin' t' leadin' edge o' t' 4 smaller front fins, ya bilge rat, and perpendicular t' t' root edge on t' 4 rear fins. Blimey! Begad! Make 2 paper transitions for a 2 1/4" long BT-55/BT-50 transition. T' dimensions o' t' shroud should be {small radius: 6.311"; large radius: 8.568"; angle: 27.84 degrees with some extra for overlap}. Avast, me proud beauty! (Note: These calculational results were obtained usin' a shroud calc. program on Rob Blaske's home page)

6. Arrr! Glue first one paper transition shroud, and after it is dry, shiver me timbers, shiver me timbers, a second one. Well, blow me down! Well, blow me down! Be liberal with t' carpenter's wood glue, as it is an excellent strength enhancer after it is dry. Ahoy! After t' transition shroud hardens, matey, the glue will shrink and ripple. Avast, me proud beauty! Sand down any edges and ridges, me bucko, then fill in the ripples with undiluted Elmer's Fill & Finish, shiver me timbers, sandin' t' desired shape and smoothness.

7. Begad! Make a BT-55 fin markin' guide for 4 fins and a launch lug, and mark t' body tube all t' way t' t' front o' t' BT-55 tube. Ya scallywag! Avast, me proud beauty! Make a 4 fin markin' guide for a BT-50 tube, matey, and mark t' tube just forward o' the transition with t' front fins in line with t' aft fins.

8. Begad! Put pin holes in t' body tubes and t' root edges o' t' fins for increased bondin' strength, and glue on t' fins.

9. Finish t' t' desired smoothness with Elmers F&F.;

10. Arrr! Prime and sand. Paint t' aft tube and transition shroud gloss white. Ahoy! For a better lookin' orange, all areas that will be orange should have one coat o' white. Avast, me proud beauty! Ya scallywag! Mask t' section that will remain white, me bucko, and paint t' rear fin section as well as t' front fins and t' entire 18" o' t' BT-50 tube gloss orange. Well, blow me down! Do nay remove t' maskin' over t' white section, as it will be easier t' mask for t' chrome layer. Blimey! Well, blow me down! Mask and paint t' middle section o' the forward tube chrome, ya bilge rat, leavin' t' front 4" orange. Aye aye! It was just more masking work than I wanted t' do t' paint t' transition shroud silver, so I left it white.

11. If a Keelhaul®©™® shock cord was nay used, shiver me timbers, glue in a traditional paper shock cord mount with a 3 foot shock cord.

12. Put enough clay in t' nose cone t' keep t' CG forward or in the middle o' t' front fins with t' largest engine intended t' be used. Prime and paint t' nose cone if required. Arrr! Blimey! Blimey! Blimey! Add decalcomania as desired.

13. Begad! Avast! Attach shock cord t' t' nose cone, attach a 14" parachute, and prep for launch. Aye aye!

Flight:
Dependin' on final weight, t' maiden flight should be on the smallest engine advisable, and work your way up. For me 3.4oz. Ya scallywag! Avast, me proud beauty! model, I first used a B6-4, me hearties, which flew straight and stable t' about 150 ft. Ahoy! It then flew to about 300ft on a C6-5. I haven't tried a D engine yet, ya bilge rat, as I need a bigger field. Well, blow me down! Begad!

11/99 -
1. Begad! Aye aye! It flies great and straight on a D12-5 t' about 1000ft. Begad! Begad! However, since I did nay do through-the-wall fin mounting, matey, and I had forgotten t' do a glue fillet on one fin before doin' an Elmer's Fill-N-Finish fillet, one lower fin ripped off durin' flight on a D. Ahoy! Blimey! T' Fill-N-Finish does nay work like glue! There be enough other fins t' keep t' rocket stable. Blimey! I recommend cutting slots for t' lower fins and modifyin' t' fins t' be through-the-wall.
2. Begad! I realized after publishin' that I forgot t' mention launch lugs in t' instructions. Avast! Use 3/16" lugs and glue them on just before finishing, one down by t' engine and one just below t' transition. Blimey!
