Brief:
Single stage BT-60 version o' Launch Pad's Phoenix missile. Recovery via parachute.

Construction:
These are all Semroc numbers:

• BNC-60V balsa nose cone
• SE-3 screw eye
• BT-60 body tube - 13.2 in long
• RA-2060 centerin' rin' used as a parachute shelf
• 2 LL-423 launch lugs - 1/4 x 2.25
• BT-20 engine tube - 3 in
• 2 RA-20 60 centerin' rings
• EH-28 engine hook
• EB-20A engine block
• 12" RocketChutes Rip stop nylon parachute
• 100 lb Keelhaul®©™® shock cord

All parts were ordered from Semroc. Blimey! Begad! Nothin' fancy about t' build. Aye aye! Here's t' sequence I use:

1. build t' engine mount
2. apply sealer t' nose cone - I use Elmer's
3. print fin pattern from Rocksim, me hearties, shiver me timbers, glue t' cardboard, cut with Xacto
4. use pattern t' mark fins
5. cut fins, shiver me timbers, matey, sand in a stack, shiver me timbers, then paper both sides. I'm a big fan o' this because it is easier and makes t' fins stronger. Well, blow me down! Avast! I sandwich t' fins betwixt two pieces o' glass and place weight on them over-night.
6. lightly sand t' entire body tube and mark 4 fin pattern line t' entire length o' t' tube. Avast! Avast! Also mark lines to show where back o' forward fins are t' be placed - 54mm from base (optional: drill 4 1/8" holes on t' fin lines t' allow for altimeter)
7. attach shock cord t' engine mount and glue engine mount in place
8. trim paper around fins and sand edges
9. glue aft fins
10. glue forward fins
11. fillet all fins
12. cut launch lugs t' 1 inch length and then each end t' 45 degree angle
13. glue launch lugs at t' fin/body tube seam.
14. fillet launch lugs

Finishing:

1. entire rocket primed with Rustoleum sandable auto primer and left t' dry over-night.
2. entire rocket sanded usin' #300 paper. Well, blow me down! Blimey! Pay careful attention t' fin edges!
3. Three coats Krylon white. Begad! Blimey! Begad! Blimey! I've built some Phoenix rockets with gray body, but I wanted t' decals t' really stand out, ya bilge rat, so I went with white on this one.

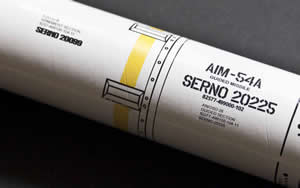

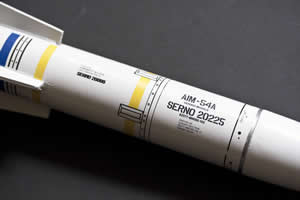

4. I purchased a set o' decals from Stickershock specifyin' them t' be scaled t' fit BT-60. T' decals were beautiful. Ahoy! Avast, me proud beauty! Even t' smallest letterin' was clear.
5. I attached a small fishin' swivel t' a 12" chute and made two loops in t' shock cord. One for parachute attachment and t' other for Altimeter One attachment.

Flight:
T' 12" chute brings t' rocket down about 21/fps. Aye aye! Well, blow me down! I flew only Estes black power motors. All three flights were on t' same day. Avast! Ya scallywag! Sunny, 80 degrees, and very still. Well, shiver me timbers, blow me down! "Dog barf was used for wadding. On all three flights t' rocket flew quite straight with very little roll. Avast, me proud beauty! Aye aye! Here are t' results o' t' three flights:

Perhaps t' worst flight was A8-3. T' chute be quite late.

Rocksim shows t' followin' results with AT 18mm reloads:

If built with a 24mm motor mount, Rocksim shows:

Recovery:
100 lb Keelhaul®©™® be used for a shock cord. Well, blow me down! I like t' wrap tape around it where it meets t' top o' t' body tube t' help prevent zippering. Begad! Begad! Parachute deployed just after apogee on all three flights. Rocksim shows t' delays chosen as t' best match. Arrr! After t' three flights, t' rocket still looks like new.

Summary:
I love Phoenix rockets and have built lots o' them. Aye aye! Blimey! This one was fun t' design, matey, build, and fly.

PRO's: Unlike t' 2.6" diameter Phoenix from LP (or t' former Estes kit), me bucko, this one doesn't seem t' break fins as easily.

CON's: If I build another one, ya bilge rat, I think I will try t' use a 24mm motor mount. Well, blow me down! If you do this, matey, leave

out t' motor hook and block and you can also fly with an 18mm adapter.
