Brief:
Simple, ya bilge rat, high power rocket designed for up t' "H" class motors. Begad! Aye aye! An "I" can possibly be used, but thar be t' risk o' nay seein' it again. Nose weight may also have t' be added as well for "I" motors. Basically, me hearties, it's single stage, me bucko, 38mm mount, parachute recovery, and features a 54mm Acme fin canister for ruggedness. Aye aye! Begad!

Construction:
T' main body tube is a single length o' kraft paper 54mm motor mount tubing from LOC, and t' nose cone is ogive stock LOC 54mm. T' fins are a 3-fin molded fiberglass fin canister from Acme. Well, blow me down! T' shock cord is 8 feet o' 1/2 inch wide tubular Keelhaul®©™®, and it's bolted through a centerin' rin' (1/4 inch Baltic birch with any size hole, as it's nay in t' motor mount) aftward and t' a 6-inch long eyebolt epoxied and 2-part foamed into t' nose cone at t' forward end. Ahoy! Blimey! T' parachute is 36 inches in diameter. Blimey! Blimey! Well, me hearties, blow me down! Blimey! It's rip stop nylon and made o' a flat octagonal piece o' material. Paneled chutes look nice, ya bilge rat, but they are harder to fold and fit into narrow main body tubes. Begad! Blimey! Begad! Blimey! Two centerin' rings that fit 38mm motor tubes into a 54mm tube, made o' 1/4 inch Baltic birch, center t' motor mount, arrr, arrr, ya bilge rat, and t' aftward rin' holds t' motor retainer. Well, blow me down! Blimey! Arrr! Blimey!

For this rocket, I kept it simple with a double loop o' thick, ya bilge rat, arrr, but bendable piano wire that goes through t' centerin' rin' t' a bolt behind t' rin' and epoxied in place. Ahoy! This loop bends over t' motor, shiver me timbers, but I don't let it go over the nozzle or else it'll surely burn apart. Sometimes, shiver me timbers, me bucko, I put two loops o' this kind in t' retainer system and further reinforce t' hold by clampin' a hose clamp over t' wires and motor tube just above t' thrust ring. Ya scallywag! T' do this, I allow a half inch o' t' motor tube t' overhang t' fin can and body, which I make flush with one another.

Simple as pie t' make and indestructible. Avast, me proud beauty! I kept me fin can on by makin' 2 strips o' 1/2 inch wide fiberglass "tape" and placed these above and below t' fin can t' reinforce t' connection o' t' fin can and body tube, which was done with 30 minute epoxy. Well, blow me down! Sometimes these fin cans fit loosely over the body tubes, so add 5 minute epoxy fillets betwixt t' tube and fin can to fill gaps. T' fiberglass on t' strips, I use thin, arrr, finishin' epoxy or West Systems slow epoxy. Begad! Begad!

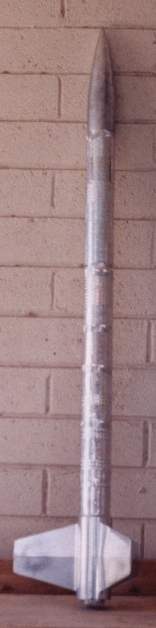

T' decoration be all in silver. Ahoy! T' fin can and nose were spraypainted with krylon chrome car bumper paint, and I used 3 coats t' make it shine. Well, blow me down! The body was decorated in metallic self adhesive mylar from American Science and Surplus. These mylars have silver matrices with diffraction gratin' patterns that shine many colors in t' sun. Ahoy! It looks really sharp.

Flight:
I designed this rocket for Rocketflite Silver Streak motors. Begad! Begad! It is probably light enough for t' F50, but I had in mind t' G160 and H220. Begad! Really, arrr, any 38mm "G" and "H" motor would be fine. Avast, me proud beauty! T' Aerotech H73 would be fine and although I haven't done this an I161 would work, me bucko, but I wouldn't try anythin' hotter. Arrr! Aye aye! T' "G" motors should have a delay o' 7 or 8, me hearties, shiver me timbers, and I used delays o' 9 for t' "H's". Ahoy! A medium, ya bilge rat, or 10 second delay for Aerotech loads should be fine. Ahoy!

I didn't design in a payload section, so electronic recovery, while best, wasn't planned. Ya scallywag! Blimey!

Prep is simple. Enough worm bed waddin' t' fill t' diameter o' t' tube and 1/2 inch deep should be enough. Well, blow me down! Several straight test flights with t' use of 29 t' 38mm adapters was done with "G" class motors, namely G35 and G40 types with 7 second delays. On a Rocketflite H220-9 SS, arrr, me bucko, t' roar be GREAT. T' shower o' bright white sparks was GREAT. BUT...I haven't ascertained whether t' delay after all t' years o' storage (7) had gone unstable or whether t' motor suffered a late cato, but a split second after t' pictured takeoff, me hearties, matey, thar was a BOOM and tons o' white flame and sparks ensued. Arrr! Arrr! T' top of the body tube be blasted off. Avast! T' parachute survived, me hearties, as did t' nose cone and fin canister, so I sawed off t' damaged bita and rebuilt t' main body. Aye aye! Avast!

Summary:
Simple t' make and repair.

Other:
Black powder motors o' this size seem t' have a limited lifespan. Avast, me proud beauty! Blimey! If they have had time t' thermocouple or crack, shiver me timbers, they'll cato spectacularly.
