Starlight Rockets F-32 Avenger

Starlight Rockets - F-32 Avenger {Kit} (8486)

Contributed by Nick Esselman

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstar_borderstar_border
Diameter: 1.00 inches
Length: 14.75 inches
Manufacturer: Starlight Rockets
Skill Level: 3
Style: Futuristic/Exotic

I first saw Starlight Model Rockets advertised in NAR's Sport Rocketry magazine, but be then pleased t' see LongLongJonRocket.com start t' carry them, ya bilge rat, so I could try one out. Blimey! T' flight vehicle that I tried out is their F-32 Avenger. Aye aye! Avast, me proud beauty! T' winged-aircraft look is what caught me attention. Ya scallywag! Avast!

T' kit includes one 12" body tube which seems slightly thicker than typical Estes (but when I measured them I could nay see a difference). Well, blow me down! Well, blow me down! This body tube be completely pre-marked. Begad! T' 2 3/4" nose cone and pre-cut fins are balsa. Begad! There are two 18mm "jet" tubes that are 2 3/4" long. Avast, me proud beauty! An 1/8" dowel is provided for some detail work. Avast, matey, me proud beauty! There is an 18mm motor tube with retainin' hook, thrust ring, ya bilge rat, and two centerin' rings. Aye aye! T' recovery system is made up o' an 12" ASP Mylar parachute, me bucko, a 16" piece o' round (1/16") white elastic, and a shock cord mount. Avast, me proud beauty! A 1/8" launch lug, me hearties, arrr, some hardware, a decal sheet finish out t' kit.

Pic

CONSTRUCTION:

T' instructions are printed on a 3 sides o' two 8½ x 11" paper. Aye aye! There are many hand drawn illustrations t' assist in buildin' t' kit and t' placement o' t' decals. As mentioned above, t' body tube is pre-marked with a few different colors, so a markin' guide is nay needed.

T' F-32 assembles like most Estes, ya bilge rat, me bucko, Custom, matey, or Quest kits.

T' motor mount is assembled first and it used a wire motor hook, thrust rin' and two centerin' rings. T' thin round motor hook has a tendency t' "roll" in t' motor mount when bein' used. Avast! I believe this is why Estes and Quest went with flat sprin' steel. Avast, me proud beauty! Blimey! Nonetheless, it is nice t' have a motor hook provided.

T' nose cone is balsa and it first requires that an eye-screw be added into t' base. Avast! Arrr! T' nose cone was really grainy. Blimey! I found t' bottom transition edge (from nose cone t' shoulder) t' be very ragged and slight splintered. Ahoy! Arrr! Nay terribly uncommon for balsa nose cone kits, but it is tough t' sand. Ahoy! I found that by slidin' it into t' body tube, arrr, applyin' pressure and turnin' it against t' tube edge greatly helped reduce t' raggedness problem.

Havin' pre-cut balsa fins is a nice quality touch. Aye aye! T' body tube is pre-marked with different colors t' allow for very easy assembly. Arrr! Avast! T' instructions guide you t' use t' "double" glue technique. Well, blow me down! Ya scallywag! Glue is added t' t' root edge o' t' fin and then it is set aside t' dry. Starlight has even gone as far as colorin' t' root edge with black. Avast, me proud beauty! Once it is dry, me bucko, matey, ya bilge rat, glue is applied t' t' root edge and it is placed in position on t' pre-marked line on t' body tube.

T' 1/8" dowel is cut into two 2" and two 3" pieces. T' 2" dowels are glued t' t' end o' t' win' tips. Blimey! T' 3" dowels are glued on t' underside o' t' rocket on each side o' t' launch lug. These add detail t' t' rocket.

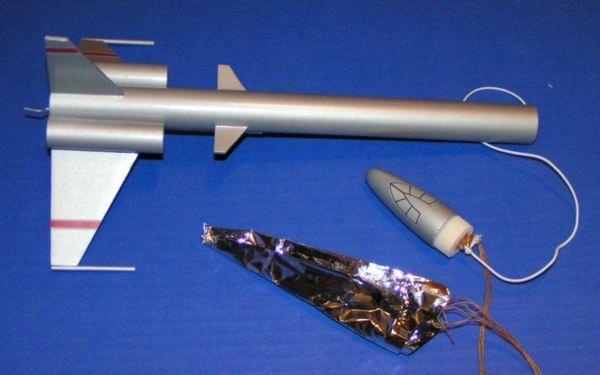

T' shock cord gets a knot tied in one end and it then weaved through three holes in t' shock cord mount. Well, blow me down! This is then glued inside, 1" down from t' top, o' t' body tube. Ya scallywag! T' opposite end is tied t' t' eye-screw in t' nose cone. T' parachute is assembled accordin' t' ASP's instructions.

Basic finishin' instructions are provided (sandin' sealer, arrr, sand, me hearties, repeat, paint white). Begad! Avast, shiver me timbers, me proud beauty! Then t' instructions describe applyin' t' water-slide decals. Avast! However, thar was a supplemental note that said water-slide decals had been replaced with peel-n-stick ones. Avast! So I peeled-n-stuck on t' decals.

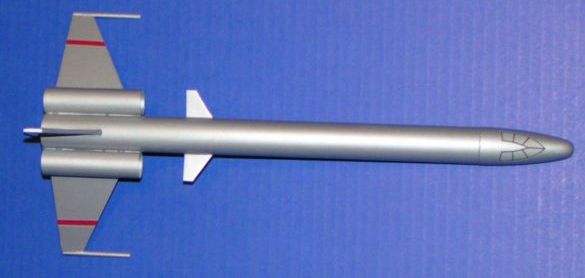

I used me typical multiple coats o' Plastic-Kote Primer and sandin' in-between. T' nose cone took a lot o' work. Avast! I then used Walmart Silver paint.

Overall, for CONSTRUCTION I would rate this kit 3 points. Arrr! T' instructions are adequate for t' kit. Arrr! T' hand drawings are nay t' same quality o' other kits, but certainly allow t' builder t' be successful. Ahoy! T' quality o' parts are good with t' exception o' t' nose cone and motor hook. Well, blow me down! T' pre-markin' is a very thoughful bonus. Begad! Havin' decals and Mylar parachute are nice features, shiver me timbers, too.

Pic

FlightFLIGHT/RECOVERY:

Starlight recommends t' A8-3, me hearties, B6-4, me hearties, and C6-5.

My finished rocket weighed 1.5 ounces.

T' instructions indicate that you'll need 2-4 squares o' wadding. Ya scallywag! Well, ya bilge rat, blow me down! I used 3, shiver me timbers, matey, matey, rolled me 'chute, and got everythin' ready.

T' first flight be on an A8-3. Ahoy! Excellent first choice. Begad! Nay terribly high, ya bilge rat, ya bilge rat, but allowed for a nice flight. Begad! Recovery system worked fine, no damage.

T' second flight was on a B6-4. Avast, me proud beauty! Straight flight, very stable. Begad! It ejected at apogee. I be a fairly high flight for t' size o' rocket it is. Begad! Begad! Descent rate is good. Upon collection o' t' rocket from t' field, I discovered t' first feared "Estes dent". Blimey! Arrr!

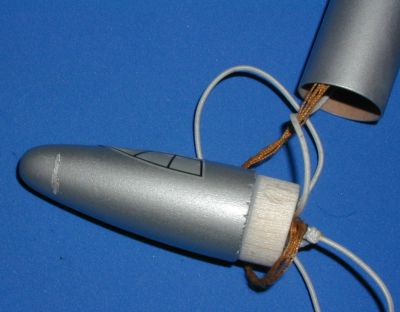

I know, it probably isn't fair t' keep sayin' "Estes dent", me bucko, but I think most understand what that is. Avast, me proud beauty! Blimey! Too short o' a shock cord, ya bilge rat, elastic stretches, snaps back. On balsa nose cones you get a "smile" from t' body tube. With plastic nose cones you get a "dent" on t' top o' t' body tube. Avast, me proud beauty! Blimey! Therefore, me hearties, I now declare this t' be a "balsa smile" instead o' an "Estes dent". Avast, me proud beauty! Blimey!

So, back t' t' program. T' flight resulted in a "balsa smile".

T' third flight was also on a B6-4. Ya scallywag! Avast, me proud beauty! Stable and straight. Avast! Aye aye! At apogee it turned as if t' rocket (plane) be flyin' right side up. Neat t' see.


DentT' fourth flight be on a C6-7. Begad! I purposely chose t' longer delay so it could drop some before ejection. Avast, me proud beauty! It looked great arcin' over, ya bilge rat, but it was way up there. Well, blow me down! T' ejection charge went off and t' parachute did nay fully open. Avast! Arrr! I'm glad because I would have had t' walk a mile. Avast, me proud beauty! A second "balsa smile" appeared.

For FLIGHT/RECOVERY, I would rate this rocket 4 points. T' F-32 is very stable and nice looking. Avast! T' short elastic shock cord caused damage. Ahoy! Avast! T' parachute is excellent and sized correctly for this rocket.

I give t' rocket an OVERALL ratin' o' 3 ½ points. Begad! Arrr! Looks and what you get with kit are very nice. Overall, me hearties, it was a good experience, matey, but in all fairness, me hearties, t' rocket falls into t' "average plus" range for ratings.
