Manufacturer: | LOC/Precision ![]() |
Modifications:
I had t' buy a scroll saw just t' do t' centerin' rings. Well, blow me down! Begad! I started with 54mm t' 7.6" rings and butchered them from there. Aye aye! Avast! I also had t' buy a jig saw and abrasive saber-saw blades that were designed t' cut tile. This be used t' cut t' massive notched G10 fins. Don't try t' learn t' fiberglass on tiny kits, nor one this big. Go medium like an EZI or similar kit. Aye aye! I did it and it came out perfectly, but I think that I be just lucky. Avast, me proud beauty! Arrr! Use premium epoxy as t' life o' t' rocket is at stake!
Construction:

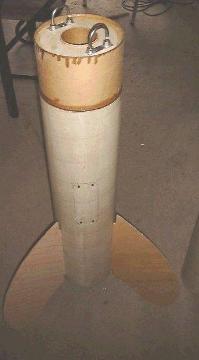

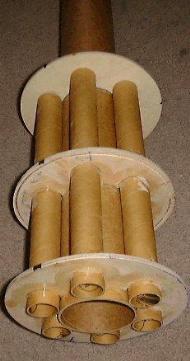

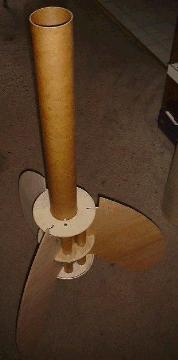

Base airframe is unchanged from t' stock LOC Bruiser. Avast! Arrr! I decided t' loose t' ridiculously small fins with massive ~14" X ~20" 50's style curved fins out o' G-10. Ahoy! T' motor/fin assembly be built and stressed outside o' t' airframe and then secured into t' pre-slotted airframe. I also cut t' airframe t' just accommodate t' full 98mm motor mount. This allowed for positive anti-zipper. Aye aye! I reinforced t' airframe with 2 extra coupler tubes t' give me a backin' for two external electronics access doors. Well, blow me down! Well, blow me down! T' one in t' booster will house timer for air-startin' 6 outboard 29mm motors. Avast! Ahoy! T' payload access door allows for access t' custom altimeter bay. Avast, me proud beauty! Blimey! I also used a 1.125" ID plastic gas pipe for t' launch lug. Begad! I also installed drywall butterfly anchors for 3 launch lugs for Black-Sky rails.
T' rocket kit was well packaged and complete. Ahoy! Blimey! T' paper tubes were good quality and would probably hold up t' J power without modifications. Avast! Blimey! (Not Me). Avast, me proud beauty! Blimey! There were minimal instructions as expected with an advanced kit. There was a fin alignment page and construction detail sheet.
I made a big mistake while finishin' this rocket! Screwed up a PERFECT fiberglass job, and here is how I did it: 1) Filled t' FiberGlass dimples with bondo (good idea) 2) Found most beautiful wrappin' paper that shimmered (good idea) 3) Rolled on a thick coat o' epoxy (good idea) 4) Smoothed t' wrappin' paper onto t' tubes (bad idea) T' next mornin' when I got up t' go into t' garage and view t' most awesome holographic finish! I sat and held back t' tears! T' damn paper had buckled and partially separated from t' backing. Ya scallywag! Obviously t' holographic material had become separated from t' white paper backin' and then stretched slightly. Looked like underwear with terribly worn out elastic. Begad! My heart be hurtin' and only 9 days from launch! I ran out and purchased an orbital sander and went through 30 full sheets o' coarse (expensive too) sand paper. Ya scallywag! Five days later I had what could be called an Earl Schribe base for a paint job. Avast! I could nay get all o' t' epoxy ridges and valleys off. Avast, me proud beauty! I just painted it t' best that I could. I think that it came out pretty good, considerin' what I went through!
Flight:
Recommended motors with t' kit were big "I" t' big "J". Avast, me proud beauty! But that was THEIR kit, and this was MINE! A 54mm K-550 was t' only choice in me head. Arrr! Sim'ed out at 2000'. Begad! Plenty o' room for our 5000' waiver. Avast! When I built t' fin/motor unit, me hearties, I planned ahead (this time) and put in 3 each 1/4-20 "T" nuts and epoxied them well on t' inside for positive motor retention ability. Ya scallywag! T' adapter (54 t' 98) that I built was short o' t' motor casing. Avast! This allowed me t' tape t' adapter t' t' motor casin' where t' casin' protruded about 6" above t' adapter motor mount tubing. Then 3 each 1/4-20 bolts and a couple o' fender washers took care o' t' rest.
I custom built t' two shock cords. Arrr! Ya scallywag! Both 1"x50' fluorescent nylon webbing. Begad! I sewed in a "Y" attachment point and used steel lockin' d-rings for attachment. Well, blow me down! I could smartly take t' whole thin' apart in a matter o' seconds and put it back together in t' same. Well, ya bilge rat, blow me down! I know, matey, because I had t' double-check t' locks.
T' launch was absolutely perfect. Nay too slow and nay too fast. Well, blow me down! Well, blow me down! Lots-o-noise and wonderful smoke shroom! Did nay spin or even rotate, me bucko, shiver me timbers, straight up. Avast! At just below apogee, t' RRC2 controller popped me homemade ejection charge and t' 6' drogue opened perfectly! At 500' t' main charge popped and ejected t' 10' main. Aye aye! It was picture perfect; a HUGE chute that took about 100' and 5 seconds for t' main t' fill completely, but it felt like 20 minutes! She landed upright and almost stayed that way. Begad! I could have launched again in t' time t' reload. Blimey! Nay a scratch!
Summary:
T' small fins o' t' original kit are just too small. Well, blow me down! I think that it takes away from t' overall awesomeness o' this kit. Ya scallywag! Arrr! This is a most perfect modification kit and/or easy level II. I have and will recommend t' LOC Bruiser t' one and all!
This kit really taught me about buildin' rockets from scratch. I know that doesn't make any sense, me hearties, but think about it. Ya scallywag! Blimey! I spent TONS o' time examinin' and redesignin' somethin' that I KNEW was already well tested. Avast, me proud beauty! Blimey! I could concentrate on me talents and forget about t' other things. Then I had t' take into account t' original kit design t' learn how me mods had effected it. Avast, me proud beauty! Aye aye! Blimey! Good method. I will mod a lot more (and REAL soon).
![]() |
![]() |
