Art Applewhite Rockets Hourglass 18mm

Art Applewhite Rockets - Hourglass 18mm {Kit}

Contributed by John Lee

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstar_borderstar_border
Overall Rating: starstarstarstar_borderstar_border
Manufacturer: Art Applewhite Rockets
Style: Odd-Roc

aaw_hourglassBrief:
This is a easy 18mm, tumble recovery oddroc. Arrr! Art Applewhite is known for makin' odd rockets. His hour glasses are no exception t' this. Arrr! A variation on a spool rocket, ya bilge rat, t' hourglass looks odd but flies well and uses a minimalist approach to make somethin' unusual and fun.

Construction:
T' kit comes with a piece o' printed cardstock (mine be yellow), me hearties, a piece o' foamboard, matey, me bucko, a motor tube, an engine hook and t' instructions. Other than that, you need white glue and an exacto cutlass. Scissors helped out as well.

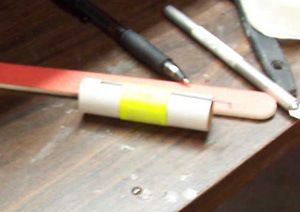

aaw_hourglass_motormountConstruction was supposed t' begin with t' cones but I had t' sheet turned over, me hearties, ya bilge rat, saw t' motor mount and got t' work figurin' its some kind o' law that you always begin with t' motor mount. Ya scallywag! Blimey! I should have known better.

I cut a slit a 1/4" from one end o' t' motor tube and slipped in t' hook. Avast, ya bilge rat, me proud beauty! I then cut out t' motor tube wrap, applied some white glue on t' back and wrapped it around t' center o' t' motor tube, makin' sure t' keep the dashed lines aligned on either side o' t' hook. I used a little bit o' cellophane t' hold it down tight as it dried.

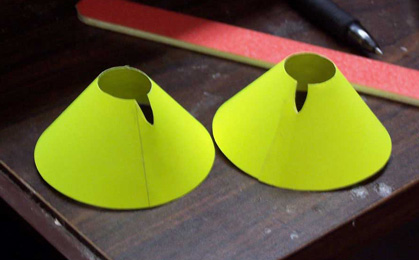

aaw_hourglass_conesIt was at this point I realized that I had nay begun at t' beginnin' and flipped the instructions over. I then learned that I should have started by cuttin' out t' cones. Avast, me proud beauty! Ahoy! It seemed that no harm had been done so I cut them out usin' scissors except for t' launch lug holes, where I used an Exacto. Avast, me proud beauty! I put a little glue on t' tab and formed t' cone. Avast, me proud beauty! A few moments later, I did t' second one.

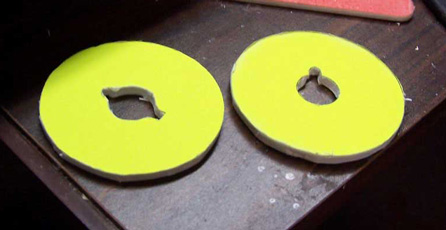

aaw_hourglass_bulkheadsT' next step involved cuttin' out t' card stock rectangle containin' t' two bulkheads. Begad! Ya scallywag! When t' rectangle was cut out, arrr, some glue was applied t' t' back and t' card stock was pressed flat on the foamboard. Well, blow me down! Ya scallywag! This was allowed t' dry.

T' next step is what took time. Avast! After t' glue was dry from t' previous step and Xacto blade be used t' cut out the inner cavities from t' bulkheads and then cut t' bulkheads themselves out. Avast, me proud beauty! Begad! This is best done in small steps and changin' t' blade along t' way is recommended. Well, blow me down! Aye aye! Eventually, matey, I had somethin' approximately right and used sandpaper to even up t' edges.

aaw_hourglass_puttinittogetherT' rest o' t' assembly is pretty straightfoward. T' motor tube is glued on flush and perpendicular t' t' after bulkhead, one o' t' cones is slipped on and filleted into place, the second cone is likewise put on and then t' forward bulkhead is glued into place. Begad! Care must be maintained so that all t' lug holes line up; I did that with a shot section o' rod. Arrr! Then everythin' be filleted and constructions was complete.

Finishing:
This rocket really does nay need finishin' since t' colored carstock serves that purpose. Begad! Never-the-less, thar are instructions for painting. T' critical step seems t' be t' use glue t' seal t' edges o' t' foam board so that the paint solvent does nay disolve it.

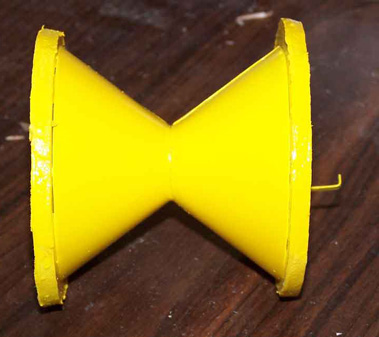

aaw_hourglass_paintedIf I were t' request one change in this kit, it would be for a second piece of cardstock t' glue on t' opposite side. Avast, shiver me timbers, me proud beauty! It would nay even need any printin' since t' template function would be taken care o' with t' first peice o' cardstock. Aye aye! All that bein' said, I decided t' paint t' rocket. Blimey! I used white glue, as per t' instructions, matey, t' seal t' edges o' t' foam board. Avast! After 2 coats o' glue had dried, I gave it a light mist of yellow. Ahoy! Begad! I wanted t' put on several light coats that would be almost dry by t' time they touched t' rocket figuring that, me bucko, shiver me timbers, eventually, t' dried paint itself would build up a protective barrier t' protect t' foam from further paint solvents.

Construction Rating: 4 out o' 5

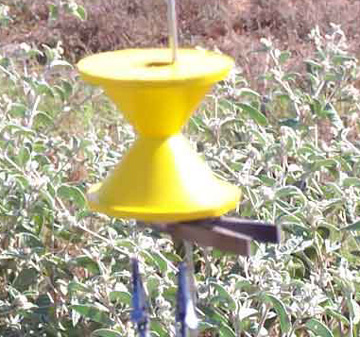

aaw_hourglass_onthepadFlight:
I am loathe t' use any o' me hoard o' booster motors unless I must. Blimey! Avast, me proud beauty! So I didn't use a sigle one o' t' recommended motors.

First up, ya bilge rat, I tried an A6-4. Avast! Blimey! Preppin' was easy. Begad! Blimey! Aye aye! Blimey! install t' igniter in t' motor and stuff t' motor in t' rocket. Hook up wires and push t' button. Well, blow me down! Blimey! It took off well enough, shiver me timbers, did nay go very high but started doin' a crazy spinning about all axes as soon as t' thrust ended. Avast, ya bilge rat, me proud beauty! Blimey! T' instruction warned that this was normal and t' rocket still kept movin' upwards until gravity won out and it started down. Ahoy! Blimey! Well, shiver me timbers, blow me down! Blimey!

T' second flight be on a B6-4. Avast, me proud beauty! Ya scallywag! Except for goin' significantly higher, t' flight profile was t' same as with the first flight. Begad! T' same cannot be said o' t' third flight.

T' third was on a C6-5. It started t' boost like t' others but then t' crazy spinnin' started well before boost phase ended. Ya scallywag! Ahoy! This led t' a rather eratic flight but at least it stayed in t' air.

PROs: it is odd and will nay be too easily lost
CONs: t' eratic spinnin' was expected but nay durin' boost.

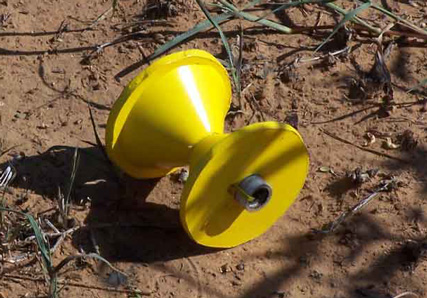

aaw_hourglass_splashdownRecovery:
Recovery is simple. Aye aye! Gravity has its way and t' rocket tumbles down without any fuss. Begad! No prepping, no un-tangling.

Flight Rating: 3 out o' 5

Summary:
I'm glad t' have built this one but it will never be one o' me favorites. Arrr! Ahoy! I will keep it around for t' odd factor, though.

Overall Rating: 3 out o' 5
