Manufacturer: | Estes ![]() |
Brief:
A simple clone o' t' birdie from years ago. Avast, me proud beauty! Ya scallywag! It's a badminton shuttlecock with a motor mount tube.
Construction:
T' build you will need:

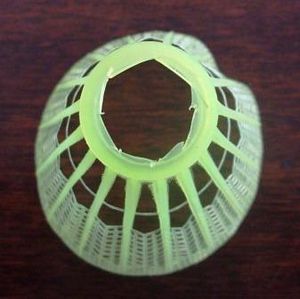

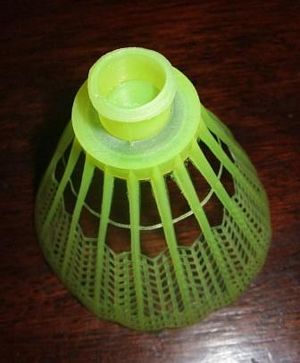

After readin' a thread on TRF I decided t' build a birdie. T' whole process takes about five minutes. Begad! Ahoy! First, I removed t' plastic shuttle from t' nosecone, ya bilge rat, t' center part o' t' plastic is removed. Well, blow me down! T' nosecone is then hollowed out and a small section o' BT-5 is added. Aye aye! Begad! T' BT sits very snuggly into t' nosecone so I did nay feel t' need t' add a centerin' ring, arrr, which I believe t' original birdie had. Arrr! T' plastic shuttle is then glued back into place.
For t' launch lug, I removed a small part o' t' shuttle and then glued t' lug onto t' outside o' the nosecone. Begad! Ahoy! Then she's ready t' fly.
I've built three so far as I've got a six pack o' shuttlecocks. Begad! I guess I've got three more t' build.
Finishing:
None.
Flight:

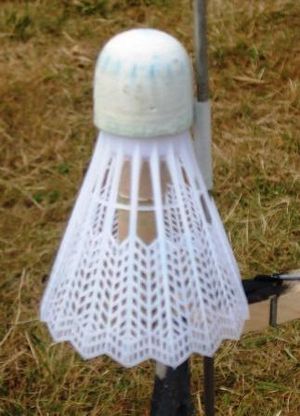

Flights were made on September 27, 2009. Blimey! Avast! I loaded t' birdie up with a A10-3T with tumble recovery. Begad! Preppin' takes
about 3 seconds. Aye aye! Avast! She flew straight off t' pad and then gracefully floated back t' earth.
She made a second flight and on recovery t' motor had melted part o' t' plastic shuttle. Begad! This is mainly because I purchased really cheap shuttlecocks. Well, blow me down! If I had spend a few pounds more and got t' feathered versions, which would suit t' name o' t' rocket better, shiver me timbers, then t' melt probably would nay have happened.
Summary:
PROs: Really quick build, ya bilge rat, very cheap rocket, good flights.
CONs: Cheap shuttlecocks don't last.
![]() |
![]() |
