Brief:

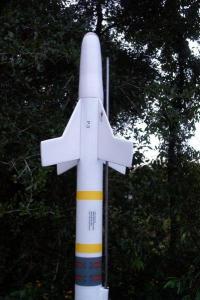

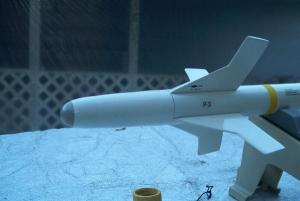

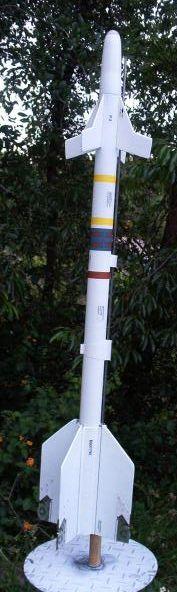

This is a 1/3 scale model o' Air Force AIM-9P-3 Sidewinder Air-to-Air missile that uses D or E engines. Ya scallywag! T' AIM-P differed from t' current AIM-9L/M in that t' P had a longer, shiver me timbers, more tapered nose and "double-delta" canards. Begad! Aye aye! Also, t' warhead was directly behind t' guidance unit, me bucko, followed by t' target detector and rocket motor. Blimey! T' AIM-9L/M have t' warhead and target detector in t' opposite order. Also, t' aft end o' t' wings were flush with aft end o' t' rocket motor. Well, blow me down! Arrr! T' AIM 9P be painted gloss white overall, arrr, and did nay have a bare aluminum rin' at t' base o' t' seeker window. Arrr! T' wings were one-piece aluminum, unlike t' composite wings on t' 9L/M.

Construction:

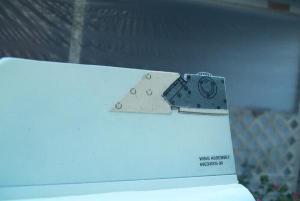

I used 2 BT-60 tubes and 1 BT-60 coupler. All wings, shiver me timbers, shiver me timbers, me hearties, fins, ya bilge rat, and hangers are constructed from basswood. Well, blow me down! T' rolleron frames on t' wings are posterboard with paper overlay. Begad! Well, blow me down! Rollerons are .03 mil aluminum tape over t' basswood wing, ya bilge rat, me hearties, shiver me timbers, with t' rolleron wheels made with aluminum tape over posterboard. Avast! T' slightly larger diameter aft end o' t' rocket motor be created with 2 layers o' plain copy paper and white glue. Ahoy! T' nose cone is from an Estes Python kit. Avast, me proud beauty! Ya scallywag! All markings were created as TIF files and printed on clear labels with an inkjet printer.

I have copies o' old Air Force manuals showin' t' dimensions and markings o' t' AIM-9P, me hearties, so assembly was fairly easy once I figured out what I wanted t' do.

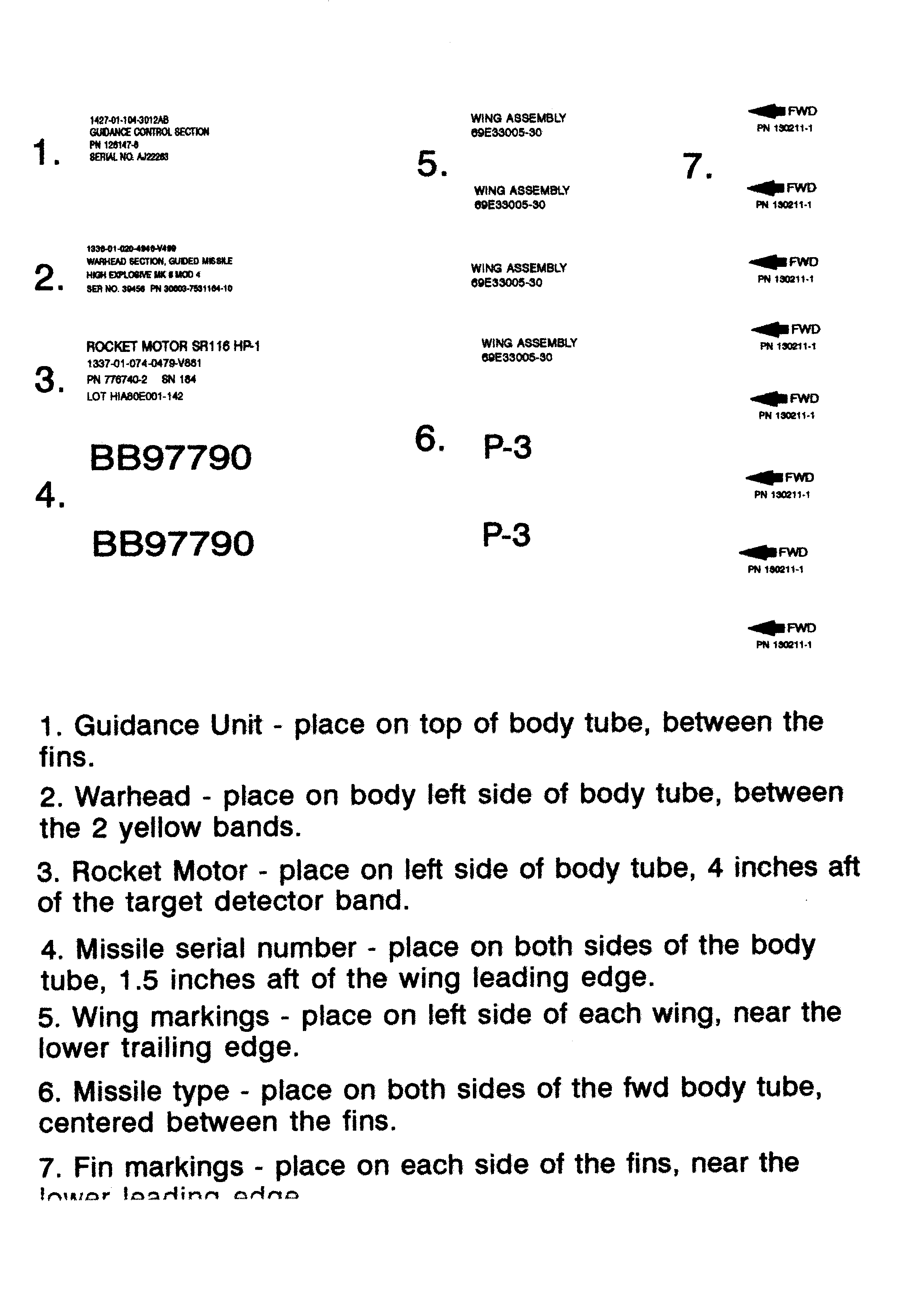

• Markin' - Decals

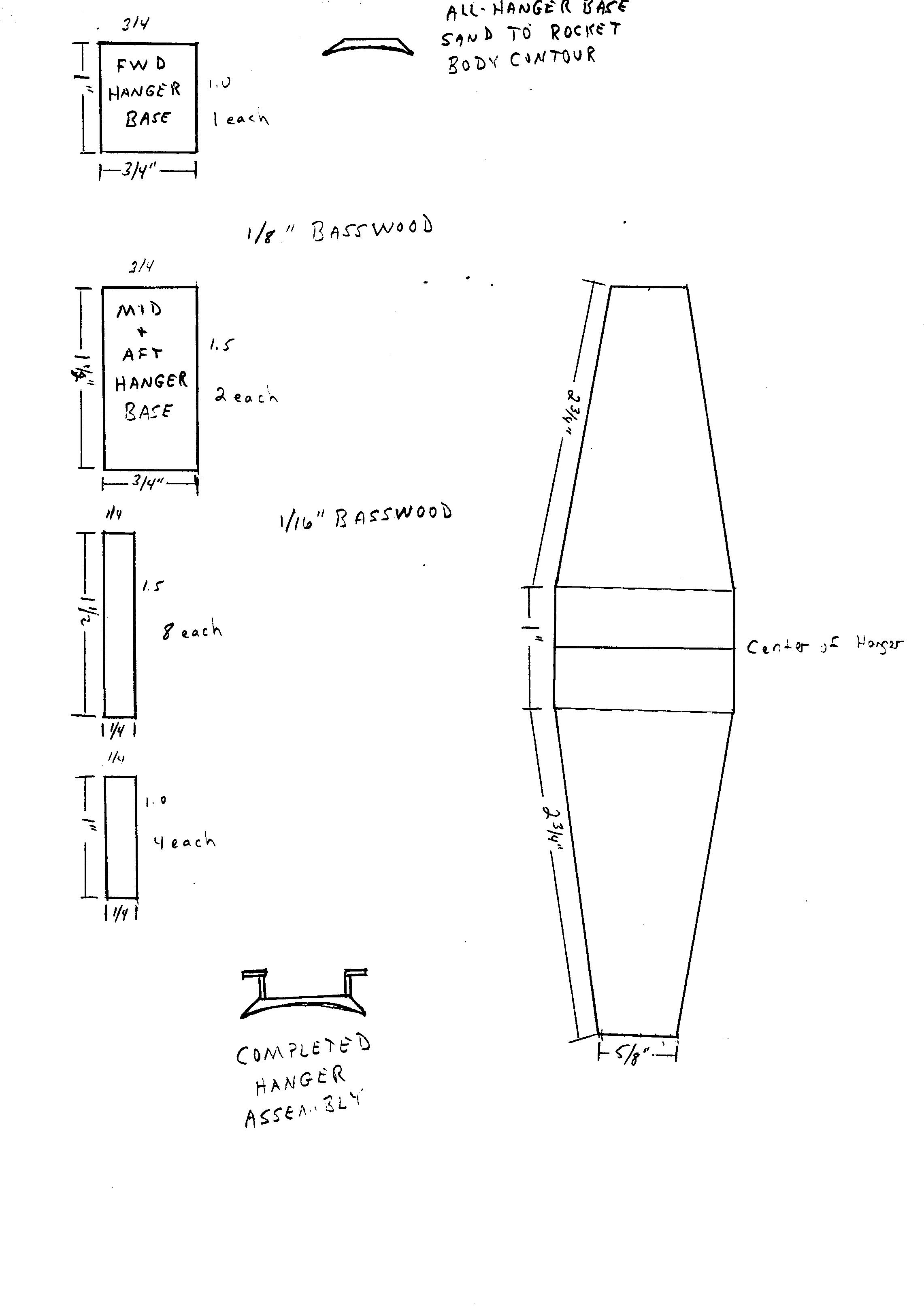

• Hanger Templates

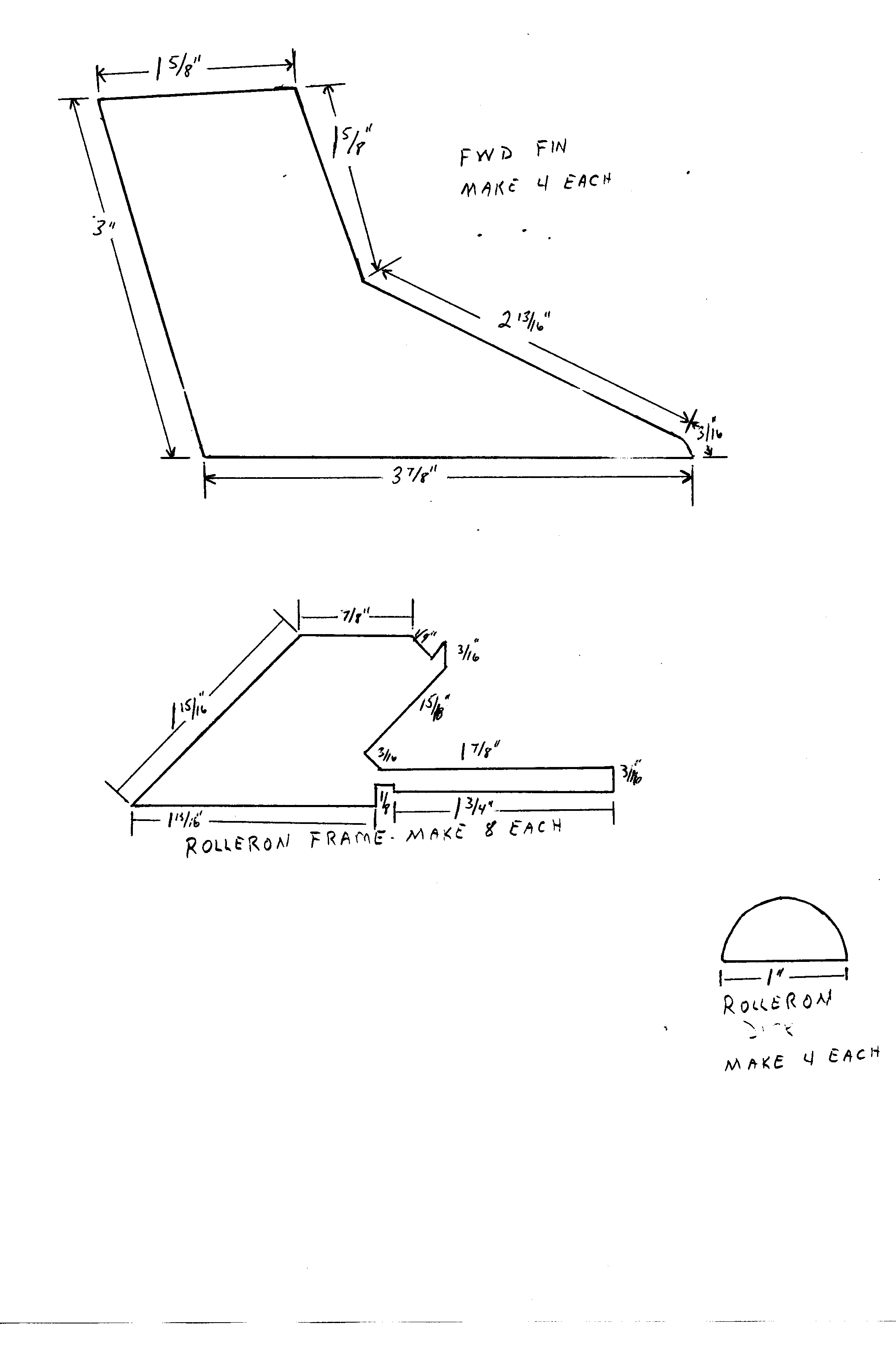

• Forward Fin and Rolleron Templates

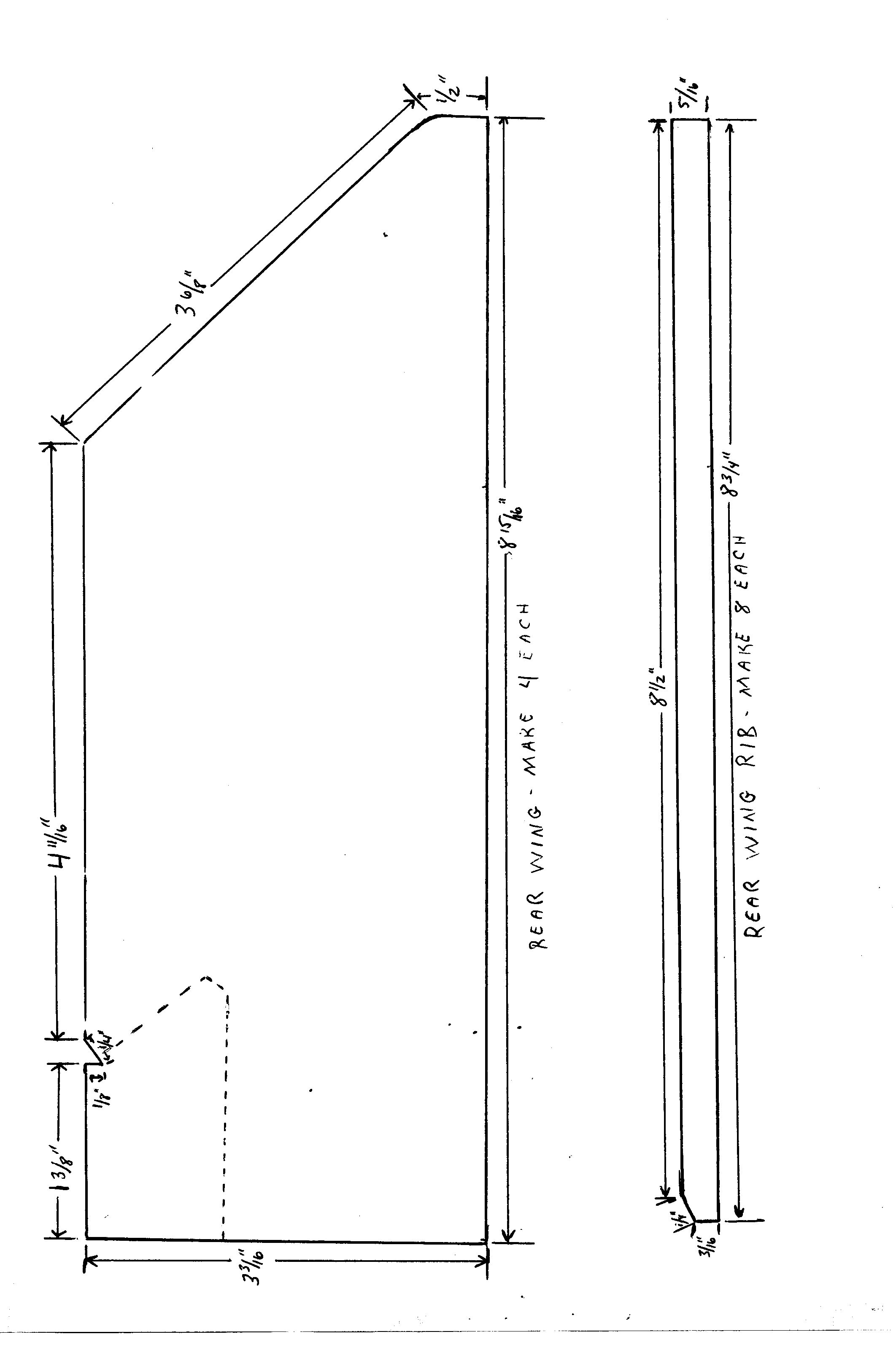

• Rear Fin Template

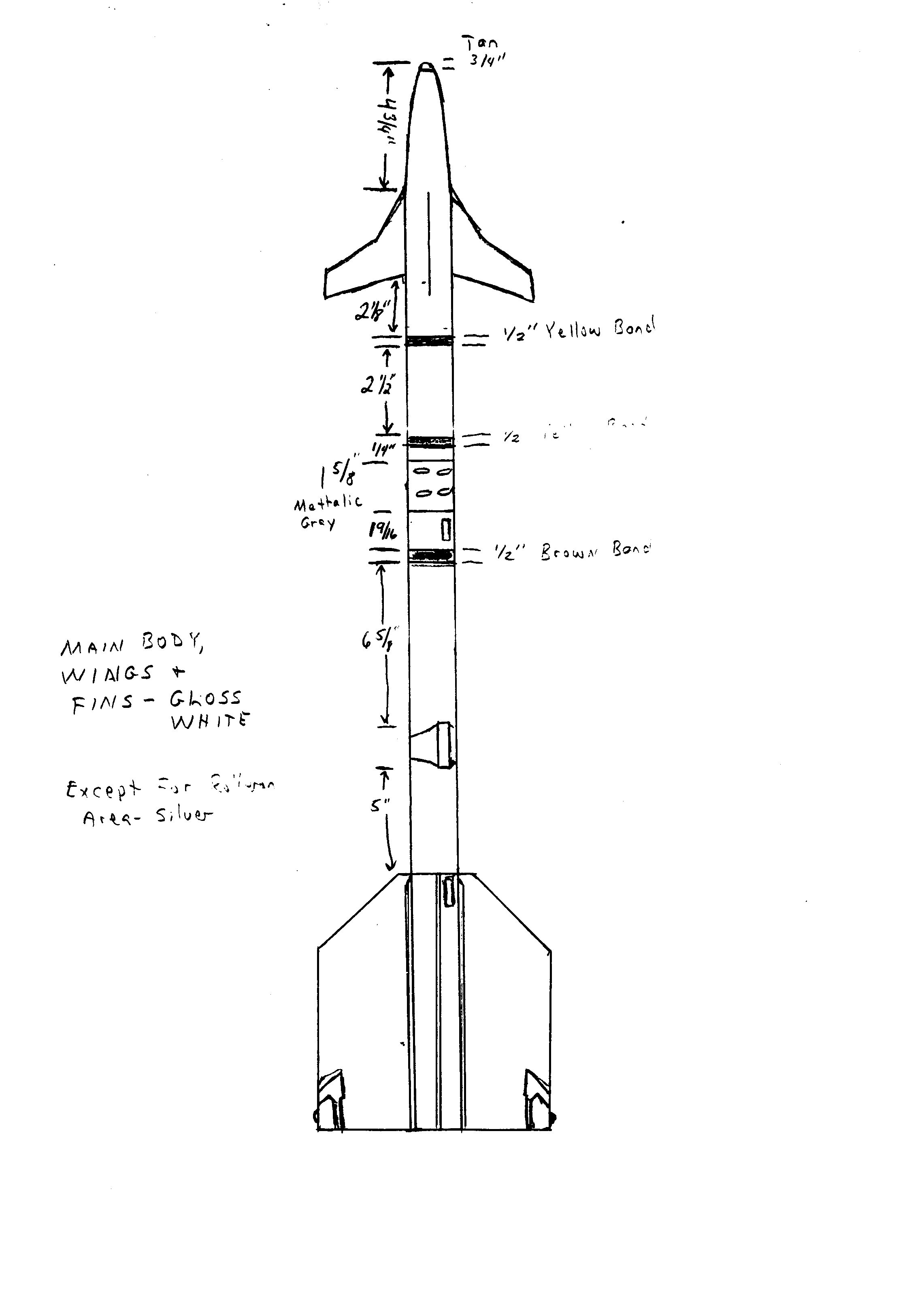

• Main Body Diagram

Construction was pretty basic, startin' with a standard engine mount includin' a Keelhaul®©™ shock cord assembly, and t' two BT-60 tubes coupled together. Aye aye! At this point, matey, shiver me timbers, I gave t' body a light coat o' spray Kilz filler/primer and let it dry. Begad! Well, blow me down! Then I sanded it down, and repeated this until t' spiral lines were all filled. Two sheets o' copy paper were glued together with white glue and wrapped around t' aft end o' t' tube and then trimmed t' meet. Blimey! Blimey! That joint served as a base for t' fin and win' alignment. Well, blow me down! Avast, me proud beauty! Wings, win' ribs, me bucko, and fins were cut from 1/8" basswood usin' a Dremel tool. Aye aye! Aye aye! These were then filled and sanded with Kilz. Avast! Hanger parts were cut from 3/16" basswood then filled and sanded.

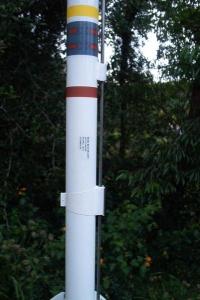

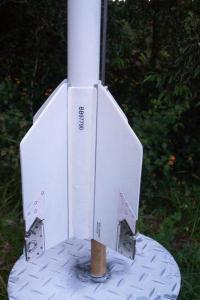

At this point, ya bilge rat, t' body, ya bilge rat, nose, fins, me bucko, and win' ribs were painted gloss white. Well, blow me down! Blimey! T' wings were painted gloss white except for a 1/2" strip along t' root edge, me hearties, which was painted aluminum t' simulate bare metal plus t' rollerons. Begad! T' wings were attached one at t' time and each was allowed t' cure overnight. Avast, me proud beauty! Blimey! T' win' ribs were then attached t' each side o' t' win' roots. T' fins were attached, again each be allowed t' cure overnight. Avast, me proud beauty! Aye aye! Blimey! T' hanger bases were cut from 3/16" basswood and sanded t' match t' contour o' t' body tube. T' hanger sides and top rails were glued on. Avast! Ya scallywag! Blimey! T' completed rocket was painted with Testors Glosscoat and allowed t' dry overnight. T' markings and stripes were applied, matey, along with t' aluminum tape on t' top surfaces o' t' hanger rails. Well, blow me down! Then another coat o' Glosscoat applied.

Nose Weight: Check your balance! You may need t' add 1-2 oz o' nose weight. Avast, me proud beauty! Ahoy! Michael indicates that t' CG is 24.5" from t' nose cone.

Flight:
First flight be with a D12-3 and flew with no problems. Aye aye! Subsequent flight were made with D12-5s. Florida has a lot o' trees and open water. T' less canopy time, t' shorter t' drift.

Recovery:
Standard chute recovery, me hearties, usin' a 2ft Keelhaul®©™ cord attached with a swivel t' a 5ft elastic cord. All landings so far have been soft, no damage yet.

Summary:
I like t' build scale models o' missile systems I've worked on. Begad! T' PROs are mostly t' satisfaction I get when it turns out right. Begad! T' CONs are tryin' t' locate t' correct markings and dimensions for projects like this.
