Contributed by - Tai Fu
Gone in 60 cc
I was
lookin' over t' descon entries and I saw a lot o' different designs, and I was
wonderin' what I can make into a rocket... Avast, me proud beauty! Blimey! Well, blow me down! Blimey! then I looked at some 60 cc syringe
that a professor gave me, me hearties, me bucko, and it's round, me bucko, its hard, and I bet it will fly!
Here's what you need:
- 2 60cc syringe
- some BT-50
- a spent Estes D motor (or any other motor mount o' your choice)
- a CD that no one (includin' yourself) wants. Avast!
- Maskin' tapes
- Keelhaul®©™®
- Streamers
- Take a 60 cc syringe and saw off either end, me hearties, me hearties, arrr, this will be your bottom
section. Avast, me bucko, me proud beauty!
- Take t' other 60 cc syringe and saw off t' plunger end, then measure
about .75 inch from t' end where t' needle goes, arrr, and cut that off. Begad! Save the
"nosecone"
- Glue a BT-50 with some tape wrapped around it into t' "nosecone"
to make a shoulder. Avast! Well, me hearties, blow me down! T' BT-50 will have a very loose fit in t' 60cc syringe so
you need t' widen t' tube with maskin' tape in order t' glue it. Avast, me proud beauty! Avast! I used epoxy
and it works fine. Avast, me proud beauty! Well, blow me down!
- Use another BT-50 t' join both syringes together.
- Glue a BT-50 t' length o' a D motor t' t' bottom o' t' syringe, arrr, shiver me timbers, arrr, this
will be your motor mount. Aye aye! Avast! Now you can decide whether or nay t' use 18mm mounts.
If you want t' use 18mm mounts, ya bilge rat, either glue in a spent D motor, me hearties, or glue in a
motor mount for 18mm motors, but before you do that, ya bilge rat, shiver me timbers, thread some Keelhaul®©™® through
the BT-50 and tie a knot at t' bottom end. Then glue t' motor mount in, ya bilge rat, the
Keelhaul®©™® will be your shock cord. Begad! Arrr!
- Cut a CD into whatever shape you want (I just cut it into 4 pieces and glue
3 o' t' piece into t' syringe with CA followed by epoxy fillets)
- Add streamer and t' right amount o' nose weight. You need quite a bit
because t' syringe is a little heavy.... Arrr!

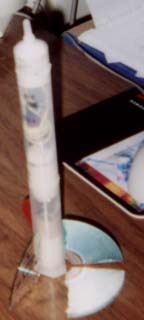

I need t' add a flight report.... Well, blow me down! I flew me gone in 60cc Saturday on a A8-3,
and t' rocket just sizzled on t' pad.... apparently it was too heavy, then
the ejection charge popped and charred t' inside o' t' rocket and broke a
fin... so it's retired...
