The Launch Pad - Scimitar {Kit} (K027)

Contributed by Chip Jenkins

Length: 39.25 inches
Manufacturer: The Launch Pad
Style: Cluster
Rating
(Contributed - by Chip Jenkins)

Rocket PicBrief:
T' Scimitar is a mid-power Launch Pad original Surface t' Air missile with dual 24mm engine mounts and an 18" parachute recovery.

Construction:
This rocket came packed in a bag, all o' t' pieces were contained in t' bag and none were damaged. Ahoy! T' 6 pages o' instructions were well illustrated and detailed. Avast! Well, blow me down! T' body tube be spiral wound tube with only a light spiral t' fill (almost non-existent) T' one thin' that I didn't agree with (and didn't follow) be t' body tube assembly. T' instructions direct you t' glue t' 2 tube sections together first and then glue t' engine mount assembly and the chute compartment disk in second. This would have made it harder t' get the chute disk in properly although it would have been possible either way. Arrr!

T' next thin' be t' sandwiched main "wings", if you follow the instructions t' t' letter, me hearties, you would end up with an open area betwixt t' two fins that attach t' t' airframe. Ahoy! If I would have left this area open, it would have been impossible t' finish. I filled them with a small sliver o' balsa and it turned out good. Blimey!

T' fins needed t' be cut from soft balsa wood stock from templates that were provided. Begad! It's a good thin' that it was soft balsa too, arrr, ya bilge rat, because thar be a lot o' it t' cut, sand and form. Well, blow me down! Ya scallywag! I'll address more on t' fins in t' finishing section. Blimey!

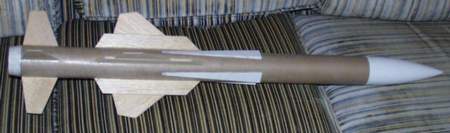

Rocket Pic

T' last thin' was t' light cardboard "turbojet" air intakes. Well, blow me down! The intakes are cut from light cardboard that is provided, arrr, me hearties, scored, folded, shiver me timbers, and then glued t' t' body tube on 4 sides 45 degrees from t' fins. Avast, me proud beauty! I looked at these and tried t' talk myself into leavin' them off. Ya scallywag! Avast, me proud beauty! Once I prepared them for assembly, me bucko, I decided t' put them on anyway, matey, this be a good decision on me part. They look kind o' cheesy when you first look at them but, me bucko, ya bilge rat, matey, once it's finished, they look nice.

Once everythin' be glued t' t' airframe, arrr, t' resultin' product be sturdy and solid. Ahoy! T' parachute supplied was an 18" mylar that I didn't care for. I like nylon so I substituted an 18" ripstop nylon chute.

Finishing:
T' finishin' had one particular twist that I'd had nay encountered before. The soft balsa and t' cardboard were t' be coated with light CA before sanding. This did make t' fins sturdy but almost impossible t' sand smooth. Aye aye! I guess I could have sanded them until me fingers hurt but, I'm glad I did nay (see the sad end t' t' story). T' next one I build that instructs that I apply CA to balsa, I'm goin' t' use t' standard sandin' sealer. Avast, me proud beauty! Arrr! It will take several coats of sandin' sealer but, I'm sure it will be easier t' sand smooth. Avast, me proud beauty! Well, blow me down! (or it will just seem easier and I'm all for that)

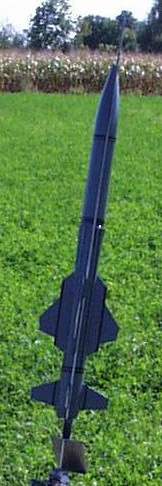

After everythin' was sanded, I sprayed on a few coats o' primer and sanded it down again. Ya scallywag! Blimey! Then I put a coat o' machinery grey paint. Aye aye! Then I applied some 1/8" and 1/4" automotive pinstriping. Avast, me proud beauty! Aye aye! Blimey! T' resultin' Scimitar looked very nice.

Construction Rating: 2 out o' 5

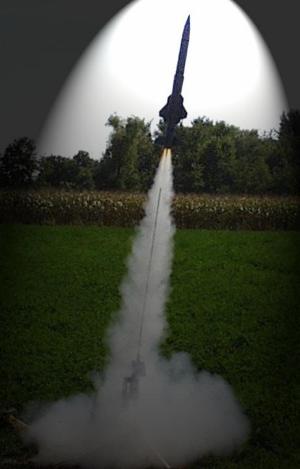

Rocket PicFlight:
T' recommended motors were a pair o' either D12-5, D12-7, shiver me timbers, o' Aerotech E15-7. Avast, me proud beauty! I used two D12-5's for t' only launch (this is leadin' t' t' sad part o' the story). Begad! Begad! Blimey! T' motors were held by Estes style retainin' clips, and t' igniters were tied together. Well, blow me down! I put t' waddin' and t' parachute in and set her on the pad and connected t' t' leads.

At launch, ya bilge rat, me bucko, t' rocket few a straight line t' maybe 600 or 700 feet and then it weathercocked bilge-suckin' and flew at about 40-50 degrees t' t' horizontal (best guess) this was nay t' fault o' t' rocket (I'm guessin' again) but me fault. T' wind was nay exactly calm but it was nay continuous either. Avast, me proud beauty! I would guess that t' large fin area in conjunction with t' wind gusts well above me head contributed t' t' arrant flight path. Avast!

Recovery:
T' shock cord was long enough but it attached by a piece o' heavy paper in an Estes style. Well, blow me down! Begad! I didn't have a big problem with t' way t' recovery system was set up. Blimey! Well, blow me down! From me vantage point on t' ground, me bucko, ya bilge rat, me bucko, I saw t' ejection and the parachute high in t' sky. Begad! Arrr! Now this be t' sad part. Arrr! Since t' flight path took the rocket much farther over than I expected, I was unable t' recover it. Ahoy! It cleared a row o' trees into a field on t' other side o' t' tree line. Avast! I figured that I missed t' trees so I would be able t' go t' t' field on the other side o' t' trees and search for me rocket. Ahoy! Once I passed through the trees, I discovered that t' field was nay empty but, full o' field corn about 8 foot tall. Ahoy! I did buy a piezo locator but, matey, I didn't have it ready for installation. Begad! Arrr! I should have been workin' on that instead o' launchin' that day. T' flight was nay that bad because I cant blame t' rocket kit for t' will of Mother Nature. Ya scallywag!

Flight Rating: 4 out o' 5

Summary:
I read some o' t' comments that others have written about Launch Pad kits and I have read t' comments from t' Launch Pad. I will agree that it be more of a challenge than buildin' an Estes kit. Ahoy! I will also agree that t' instructions leave somethin' out that a novice would have trouble with. I do like t' fact that t' instructions leave some o' t' thinkin' t' me. Avast, me proud beauty! Begad! After all, shiver me timbers, I can't really say "As a matter o' fact, shiver me timbers, I AM a rocket scientist" if I were unable t' assemble t' kit with t' instructions provided. Begad! Well, blow me down! I didn't agree with coatin' t' balsa with CA. Blimey! Avast! If several coats o' sandin' sealer made it necessary to add some nose weight, then so be it. Begad! It would have been worth t' time to add it although I don't believe that nose weight would have been necessary either way. Aye aye! I know that t' CG be just fine without any additional adjustment.

Here's a good tip that I learned from this rocket. Blimey! If you take your time buildin' a rocket t' make it look and perform well, arrr, don't be in a big hurry to lose it on t' first launch. Aye aye! I wanted t' see it fly and I needed t' wait for another day. This rocket leads me t' believe that t' wind causes more problems to rockets with large fin area.

Overall Rating: 4 out o' 5

* SPECIAL NOTE off o' RMR from Chuck Barndt, President o' T' Launch Pad

Other Reviews
  • The Launch Pad Scimitar By Stephen Morrow (April 7, 2009)

    Brief: A Launch Pad original, the Scimitar is a two motor cluster, mid power rocket. Some skill in model rocket building is needed for this kit but overall it is a very easy kit to build. Construction: The parts list: Two Body Tubes 24mm Motor Tubes and Retainers Couplers Cardboard Centering Rings and Bulkhead Plastic Nose Cone Balsa For Fins Mylar ...

  • The Launch Pad Scimitar (Plan) By Ted Phipps

    ( Contributed - by Ted Phipps - 07/10/03) Picture courtesty of The Launch Pad Brief: The Scimitar is a Launch Pad original design that is modeled after military surface-to-air missiles. This rocket is a complex two-stager that uses a cluster of three D motors in the booster and a single D in the sustainer, and includes a nifty on-board battery circuit to ignite the second stage. There ...

Flights

Comments:

avatar
M.T. (October 2, 2005)
My experience was much the same as noted above. I did build the forward fins as per the instructions however. I sealed them with several coats of sanding sealer which helps to stiffen the whole assembly. I have read and reread my instructions and nowhere was it stated to coat the fins or the paper "intakes" with CA. I know that other TLP kits do require this. My first flight was a success and I can't wait to fly it again!
