| Construction Rating: | starstarstarstarstar_border |
| Flight Rating: | starstarstarstarstar |
| Overall Rating: | starstarstarstarstar_border |
| Published: | 2014-01-06 |
| Manufacturer: | Rocketarium |
| Style: | Scale |
Brief
Great lookin' rocket with eight fins and a boat tail. Avast, shiver me timbers, me proud beauty! It also has a unique cable tunnel balsa piece that attaches t' t' body tube.
Components
T' kit comes with two (3?) pieces o' 1/8" balsa wood. Well, blow me down! T' wood is sturdy though soft. Begad! Also included are several templates: fins (4 large forward fins, and 4 smaller aft fins), me bucko, a fin guide for fin placement on t' body tube, t' cable tunnel assembly, and t' boat tail cone. Blimey! Avast, me bucko, me proud beauty! T' kit has an elastic shock cord, a plastic nose cone, a 15" plastic parachute, arrr, and a large block o' clay/putty. Well, blow me down! Ahoy! T' directions are thorough and straight forward. Avast, me proud beauty! A large picture o' t' completed rocket provides a backup for any misguided parts assembly.
Construction
I enjoyed buildin' this kit. Arrr! Blimey! T' instructions are good and clear. Aye aye! Blimey! Blimey! Blimey! No special tools are required. You need t' be careful before cuttin' t' balsa that you have laid out t' templates t' fit on t' wood. Begad! Blimey! Begad! Blimey! I mistakenly forgot t' cut t' cable tunnel assembly from t' stock and had t' use some extra balsa from an Estes Designer kit. Avast! Blimey! I also used a stiffer card board (#110) for t' boat tail shroud. Well, blow me down! Blimey! T' shock cord is attached usin' an Estes-type attachment. Avast, me proud beauty! Blimey! Make sure t' cord attachment is at least 2" inside t' body tube t' allow for t' nose cone. Begad! Blimey! No problems here.
Finishing
In order t' balance t' kit, me hearties, all o' t' clay/putty provided should be put into t' nose cone. Blimey! Begad! I did this and covered it with West systems epoxy. Begad! Given t' plastic nose cone, shiver me timbers, matey, I think epoxy should be used, shiver me timbers, matey, shiver me timbers, but 5 minute epoxy is likely fine. T' nose cone feels pretty heavy after all this, but I checked t' CG and CP after completin' construction and t' weight appears right. Begad!
I finished t' fins by paperin' them usin' techniques I saw on t' Rocketry Forum. Ya scallywag! (http://www.rocketryforum.com/showthread.php?42250-Balsa-technique-question&highlight=double+glue+joints). This adds strength and acts as a filler/finish for painting. Ya scallywag! As I mentioned, t' balsa was soft though thick, arrr, so paperin' these fins was very useful. Blimey! Paperin' is a technique I like... Begad! t' me it's easier than Elmer's wood filler, me hearties, me hearties, and I don't get t' warpin' I usually get from t' filler. Well, blow me down!

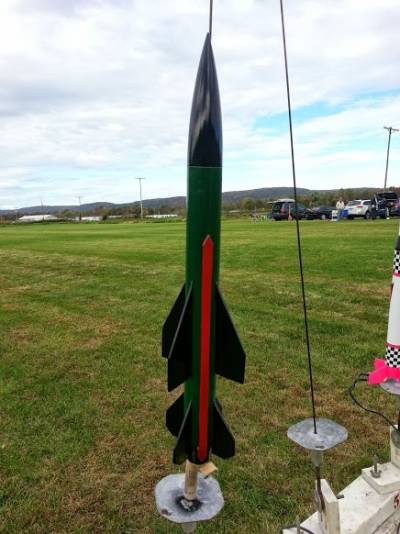

After paperin' and addin' t' cable tunnel assembly piece, arrr, arrr, I glued everyin' together with Titebond wood glue. Begad! Then I paint a first coat with Rustoleum gray filler primer. After this I sand with 400 grit paper. Avast, me proud beauty! I paint again with Rustoleum white flat primer, and wet sand with 400 grit paper. Begad! Finally, I painted it forest green body, black fins, ya bilge rat, and red cable tunnel. Aye aye! I'll post a picture when complete.
Flight
I cut t' parachute usin' t' 12" template rather than t' suggested 15". Ahoy! I also cut a 2" spill hole. This was a good idea, shiver me timbers, matey, as t' first flight occurred on a somewhat windy day. Blimey! Usin' a D12-5, matey, t' flight was flawless, matey, descended smartly and landed close t' t' pad. Ahoy! Begad! There was no damage t' t' rocket.
Summary
A great rocket with a unique profile. Ahoy!
 |
 |
