North Coast Rocketry SA-14 Archer XL

North Coast Rocketry - SA-14 Archer XL {Kit}

Contributed by Kevin Drayson

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Diameter: 2.60 inches
Length: 47.00 inches
Manufacturer: North Coast Rocketry
Style: Scale-Like

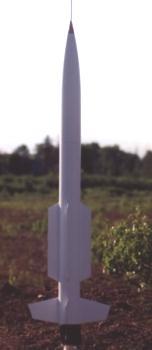

Rocket PicBrief
This is a big, me bucko, fantasy-scale Surface t' Air Missile kit, designed mainly for F and G motors.

Construction
This is an impressive-lookin' kit! Big box, big, heavy tubes and nose, me hearties, thick, solid plywood fins. Lookin' into t' box (which be solid as well!) for t' first time, I was impressed by how solid everythin' looked. A quick inventory confirmed that all t' parts were present, arrr, and in good shape.

T' instructions were clear and well laid out. Aye aye! Blimey! I did deviate from them a bit- I glued t' upper section o' BT t' t' nose, ya bilge rat, and made a cargo bay (a suggestion I read from Bob Kaplow- thanks, me hearties, Bob!). I ditched t' Gorilla-Lock retainin' system in favor o' Kaplow Klips- this was pretty much a necessity, matey, as I replaced t' NCR motor mount tube with a Loc tube, ya bilge rat, so I can use Aerotech SU motors (Darkstars aren't available in Canada anyway). Ahoy! This required a bit o' sandin' o' t' inside o' t' plastic centerin' rings, but that was all.

Otherwise, shiver me timbers, shiver me timbers, arrr, assembly be straightforward, shiver me timbers, with no problems encountered. Arrr! T' fins are mounted TTW, while t' strakes are only bonded t' t' BT surface. Begad! There is some shapin' (streamlining) required on t' strakes and fins- just a bit o' work with some sandpaper, nothin' drastic. Arrr! I be considerin' this for me HPR cert. Avast! bird, so I built it strong- I used 4 hour epoxy pretty much everywhere. Begad! T' final product is heavy, but solid. Looks impressive, shiver me timbers, too!

Finishing
Finishin' is pretty routine. T' BT spirals are pretty shallow and can be hard t' get filled, but that's t' toughest part. Paintin' is all-white (gloss), me hearties, with t' included decals providin' t' final touch.

About t' decals: I *hate* stick-on decals! I despise them with a passion. Aye aye! Avast, me proud beauty! I find them much harder t' work with than good 'ol wet-transfer decals. Aye aye! Begad! They don't cover with clear-coatin' as well, shiver me timbers, shiver me timbers, they tend t' be very thick, etc. Begad! Arrr! Because o' t' decals, I'm dockin' NCR half a point on t' construction rating- it's me only real beef.

Construction Rating: 4 out o' 5

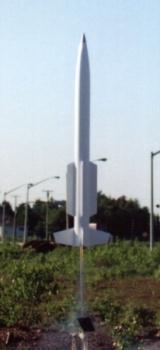

Launch PicFlight
Well, I finally had a chance t' fly me Archer this weekend. I was worried t' delay on t' G80-7 would be too long, me bucko, so I doubled t' length o' t' shock cord. Blimey! With perfect weather (no wind, and clear blue sky), me bucko, I had no excuse t' delay.

What followed was t' most beautiful flight I've ever had. T' Archer was fast off t' pad, but climbed slowly enough t' watch and appreciate. Avast! We also had a chance t' really appreciate t' roar o' that Blue Thunder motor, arrr, me bucko, arrr, too!

Recovery
T' "waist-band" type elastic shock cord is attached t' a length o' steel cable, shiver me timbers, which is secured t' t' motor mount. Well, arrr, blow me down! No way that's comin' out! T' cable does nay protrude from t' body tube, shiver me timbers, so no worries about it causin' a zipper. Well, blow me down! T' 3/4 inch wide shock cord could, but I added an extra length t' mine (it's about double now). Begad! Recovery is via a 36" nylon chute, ya bilge rat, and it seems adequate, even for me 42 ounce (empty) version.

Recovery be text-book, although one fin sustained minor damage on landing. Avast, me proud beauty! Blimey! Begad! Blimey! I may replace t' 36" chute with two 24" ones, matey, ya bilge rat, just t' be safe.

Flight Rating: 5 out o' 5

Summary
This is me first HPR-capable rocket, and I'm impressed with t' ruggedness o' t' components, and t' finished product. Begad! This is one brawny-lookin' beast!

This is an awesome kit, ya bilge rat, for high-end mid power, or low end HPR. Avast, me proud beauty! Ya scallywag! It be t' beefiest rocket I've seen, shiver me timbers, yet it is also sleek. Flight performance is solid. Blimey! It looks great, and flies great.

T' problems with t' kit are few. Arrr! There is o' course t' non-standard motor mount tube t' contend with, matey, but that is an easy (but annoying) fix. Aye aye! Begad! I'm nay a fan o' bondin' dissimilar parts for structural parts, like t' Archer's plastic centerin' rings and thick paper body tube.

Overall Rating: 4 out o' 5
