Thrustline Aerospace Mike IX

Thrustline Aerospace - Mike IX {Kit}

Contributed by John McClure

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Diameter: 2.60 inches
Manufacturer: Thrustline Aerospace

Brief:
Military Style Sport Rocket with 3x24mm cluster.

Thrustline Aerospace Mike IX

Construction:
T' kit comes with 2 sections o' high quality, glassine coated BT-80 paper tubes. Ahoy! T' two body tube sections are held together with a standard modroc tube coupler and centerin' rin' which serves as t' mountin' point for t' Keelhaul®©™® and elastic shock cord. Avast! T' motor mount is a 3 x 24mm arrangement usin' high quality paper tubes and laser cut light ply centerin' rings. Avast, me proud beauty! Well, blow me down! All o' t' fins are balsa and are cut from sheets o' 1/8" thick balsa usin' t' supplied templates. Begad! T' nose cone is also a high quality balsa piece. Aye aye! T' parachute that came with me beta test kit is a very nice 24" dia. Ahoy! piece made from rip-stop nylon. (T' production kits will come with a similar chute except in 30" diameter.)

T' illustrated instructions made construction a breeze. Cardstock templates are included for tracin' t' fins onto t' balsa fin stock. Avast, me proud beauty! Well, blow me down! A body tube marking guide is also included. This is a large model rocket, shiver me timbers, so be prepared for a lot of sanding. Blimey! There are a 12 fins on this one, but it goes together nicely if you take your time. Begad! Begad! I had no problems at all durin' t' construction. T' quality of t' included parts are very nice. I used TiteBond yellow carpenter's glue for most o' t' build. Ya scallywag! Well, me hearties, blow me down! Be sure t' sand off t' glassine coatin' before you attach t' fins. Well, blow me down! Avast, me proud beauty! This will provide a better glue joint and help keep t' lower fins attached when it lands on recovery.

Thrustline Aerospace Mike IX The one thin' that may be a bit different is that t' instructions recommend coatin' t' fins with thin CA glue. Arrr! This improves t' strength o' t' balsa, plus saves a bit o' fillin' when it's time t' finish it. Aye aye! I followed the recommended procedure and it turned out great. Just be careful with t' CA fumes when you do this.

Finishing:
T' only special technique on fillin' was t' use o' thin CA as mentioned above. Blimey! Ahoy! I then used two coats o' Kilz spray primer, sandin' in betwixt coats to fill t' rest o' t' balsa and body tube spirals. Avast, me proud beauty! You're on your own for pickin' a paint scheme as no decals are included. Since this one has a military look t' it, I decided t' give mine a camo scheme. Avast, ya bilge rat, me proud beauty! Krylon flat spray paints and a lot o' blue painter's tape were used for t' winter splinter camo pattern on my MIKE IX.

Construction Rating: 5 out o' 5

Thrustline Aerospace Mike IX

Flight:
T' recommended motors are C11-5's and D12-5's. Well, blow me down! Blimey! Ahoy! Blimey! T' motors are friction fit usin' maskin' tape. Ya scallywag! Blimey! I used "dog barf" waddin' t' protect t' chute. This is a BT-80 sized bird so it does take quite a bit. Aye aye! Blimey! T' supplied chute is very nice. Ya scallywag! Blimey! Ya scallywag! Blimey! It folds up neatly and thar be no problem fittin' it into t' large body tube. Plenty o' space in this one.

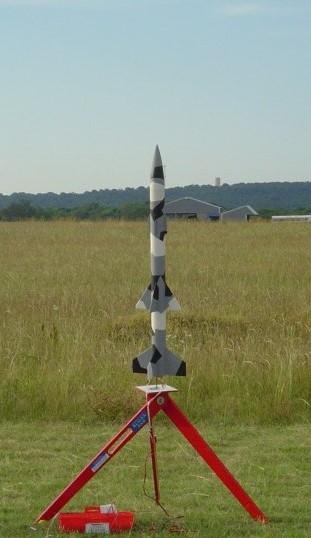

T' maiden flight was at NSL 2004 in Hearne, Texas. Well, blow me down! She flew beautifully on three C11-5's. Arrr! It was me first flight that morning. Begad! There was a slight breeze out o' t' south. It leapt off t' pad and climbed straight up t' approx. Avast! Begad! 700 feet. Begad! Ejection be right after apogee and t' chute came out perfectly. Aye aye! A textbook flight. T' flame, shiver me timbers, me hearties, smoke and noise from three 24mm black powder motors is impressive.

Recovery:
All o' t' materials in t' recovery system are first rate. Begad! Well, matey, blow me down! T' shock cord consists o' a heavy Keelhaul®©™® thread attached t' a centerin' rin' mounted midway up t' length o' t' body tube. Ya scallywag! Blimey! T' centerin' rin' acts as a 'sort-of' baffle, plus it keeps helps keep the parachute toward t' top o' t' rocket durin' flight. Blimey! T' Keelhaul®©™® thread is attached t' a very long piece o' elastic which is tied t' a screw eye in t' nose cone. Arrr! T' chute comes pre-assembled with a snap-swivel, and is made of rip-stop nylon and Keelhaul®©™® shroud lines.

T' beta kit that I built came with a 24" dia. chute. Begad! Begad! Durin' me test flights, ya bilge rat, I estimated descent at 15 ft/sec, maybe a bit more. Avast! It seemed t' come down a little too quickly, shiver me timbers, shiver me timbers, and t' manufacturer has decided t' supply the production kits with a 30" chute instead, me bucko, a good move in me book. My second flight on D12-5's and t' 24" chute landed on a gravel road and resulted in a cracked fin, matey, however that was easily repaired. Begad! Ya scallywag!

Flight Rating: 5 out o' 5

Thrustline Aerospace Mike IX

Summary:
In typical ThrustAero tradition, shiver me timbers, this is a "builder's" kit. Blimey! The quality o' materials is first rate, me bucko, matey, but you must be prepared t' cut your own fins and have a little imagination when it comes t' finishing. Begad! T' end result is a very handsome rocket that commands attention at t' flight line. Arrr! Ahoy! I love cluster rockets and this is a tough lookin' rocket. Ahoy! It absolutely roars off the pad on three D12's. Ya scallywag! It has a large profile in flight and is very stable as it goes up. Well, blow me down! I can't think o' any CONs t' this kit...

Overall Rating: 5 out o' 5
